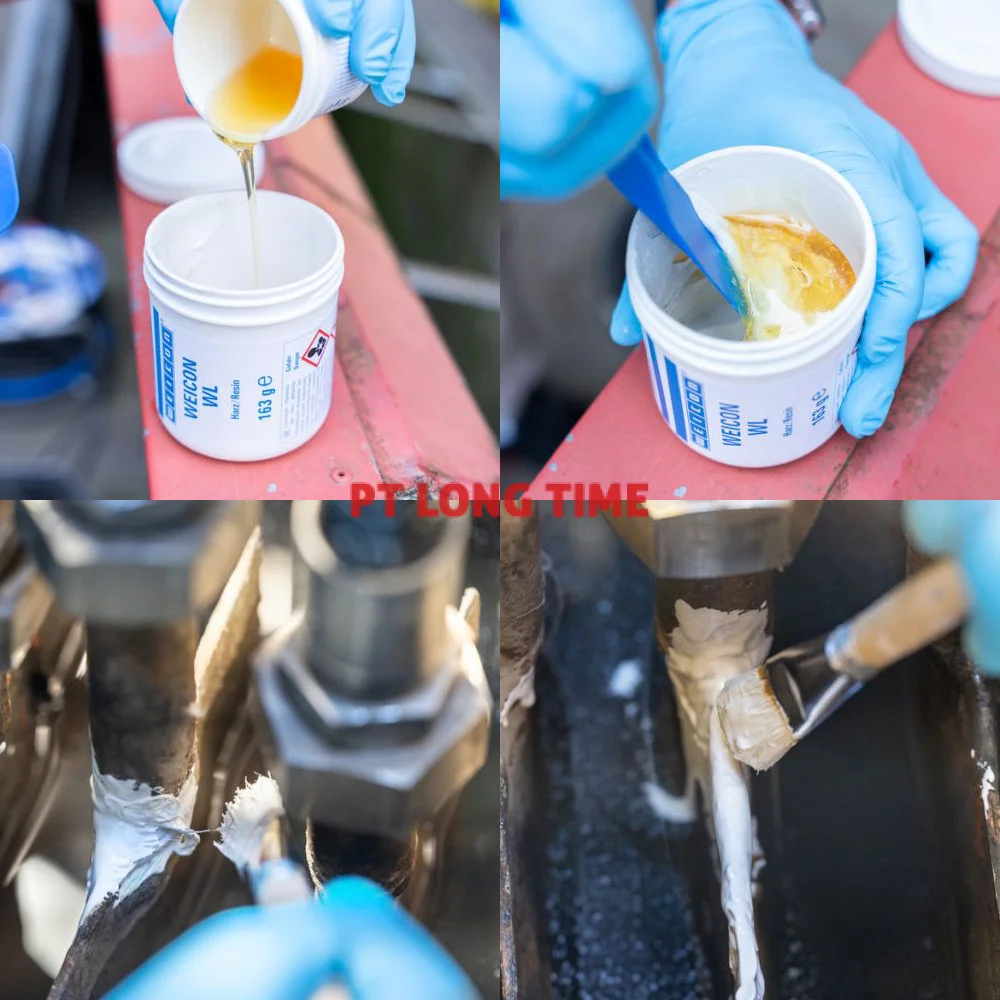

The WEICON WL epoxy resin system is used to coat surfaces that are subject to stresses. It has a high adhesive strength, especially on stainless steel. It is liquid, sprayable, spreadable (can be applied with a brush), self-levelling, retains residual elasticity, is ceramic-filled and chemical-resistant. Owing to its long pot life, WEICON WL can be used for applications with higher ambient temperatures or for larger surfaces. Due to the high flowability of WEICON WL, it is important to ensure a low layer thickness and to observe the layer sequence time. WEICON WL is well suited for a system build-up in combination with other Plastic Metal types. For example, the 2-component epoxy resin can be used as a primer when lining pump casings made of stainless steel that are subject to heavy stress. The surface coating can be used in the field of wastewater technology, on pumps, in water pumping, in mechanical and plant engineering, in apparatus engineering and in many other areas of industry.
| Base | Epoxy |
| Filler | Ceramic |
| Texture | Liquid |
| Colour after curing | White |
| Processing temperature | +15 °C to +40 °C |
| Component temperature | > 3 °C above dew point |
| Relative air humidity | < 85 % |
| Mixing ratio by weight | 100:22 |
| Mixing ratio by volume | 100:46 |
| Viscosity of the mixture at +25 °C | ~ 7,000 mPa·s |
| Density of the mixture | 1.7 g/cm³ |
| Consumption (Layer thickness 1.0 mm) | 1.7 kg/m² |
| Max. layer thickness per step | 20 mm |
| Pot life at 20 °C, 500 g batch | ~ 70 min. |
| Additional layer after ( 35 % strength) | 8 h |
| Working strength after (80 % strength) | 18 h |
| Final strength (100 % strength) | 36 h |
| Shrinkage | 0.04 % |
| Tensile strength (DIN EN ISO 527-2) | 35 MPa |
| Elongation at break (tensile) | 2.2 % |
| E-modulus (tensile) | 2400–2700 MPa |
| Compressive strength (DIN EN ISO 604) | 67 MPa |
| Bending strength (DIN EN ISO 178) | 39 MPa |
| Hardness (Shore D) (DIN ISO 7619) | 80±3 |
| Adhesive strength (DIN EN ISO 4624) | 15 MPa |
| Taber Test (DIN ISO 9352) | 0.9 g / 0.55 cm³ |
| Lap shear strength (DIN EN 1465) - Steel 1.0338 sandblasted | 14 MPa |
| Lap shear strength - Stainless steel V2A sandblasted | 20 MPa |
| Lap shear strength - Aluminium sandblasted | 9 MPa |
| Lap shear strength - Galvanized steel | 4 MPa |
