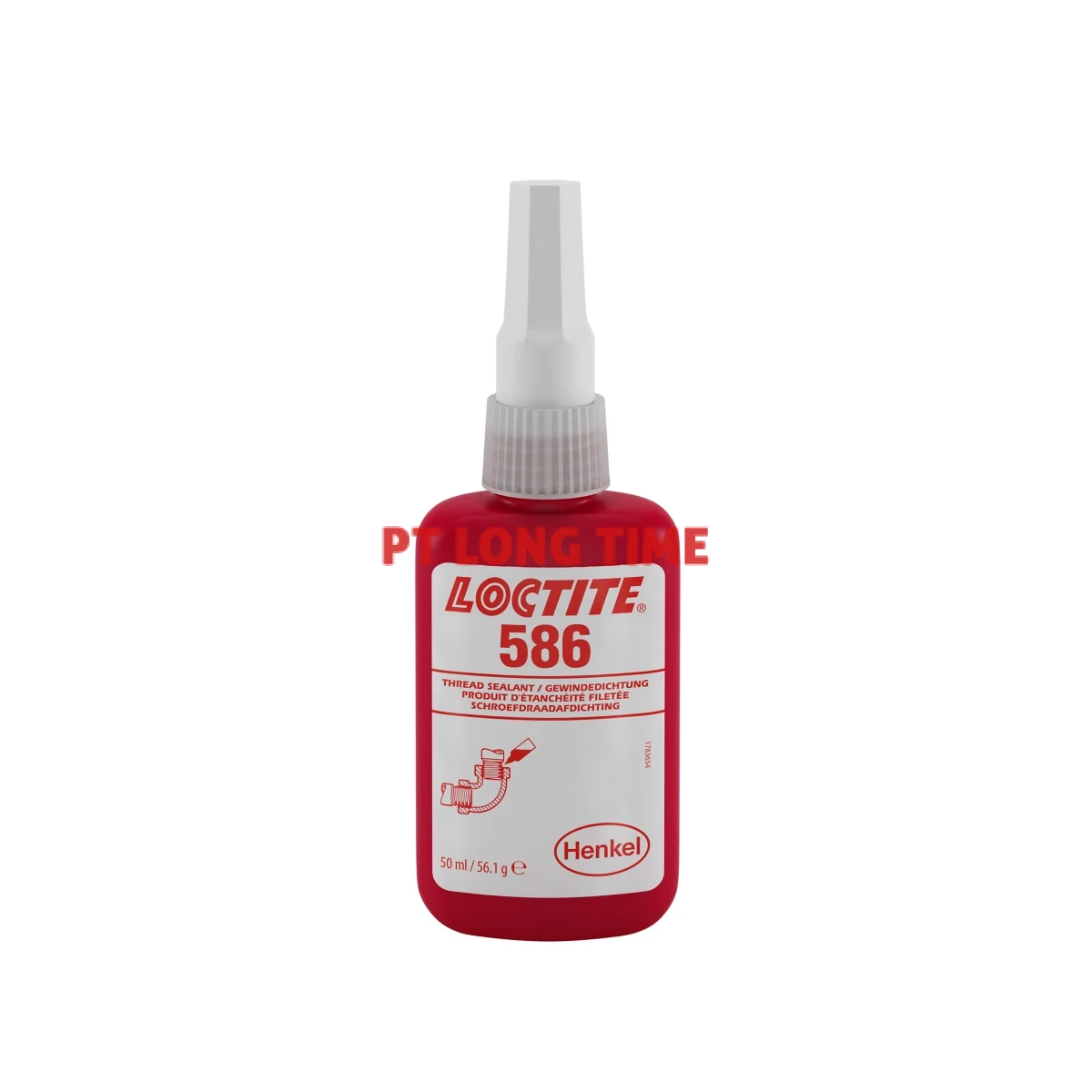

Thread Sealant Refrigerant Sealant WEICONLOCK® AN 305-86 LOCTITE 586
Specification
Name
Thread Sealant Refrigerant Sealant WEICONLOCK® AN 305-86 LOCTITE 586
SKU
AN 305-86
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Red | |
| Fluorescent | No | |
| For Thread Connections up to | M 56 R 2" | |
| Viscosity | 6,000 - 7,000 nt mPa·s | |
| Gap Bridging | Up to max. 0.3 mm | |
| Breakaway Torque | 15 - 30 Nm | |
| Prevail Torque | 25 - 45 Nm | |
| Shear Strength (Nmm²) | 10 - 20 N/mm² (DIN 54452) | |
| Handling Strength at Room Temperature | 60 - 90 min. | |
| Final Strength | (100% Strength) | 12 - 24 h |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1300 bar |
| M_6x10 | max. | 700 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Agency approvals / certificates / specifications | BAM |
| Color | Red |
| Key characteristics | Thixotropic |
