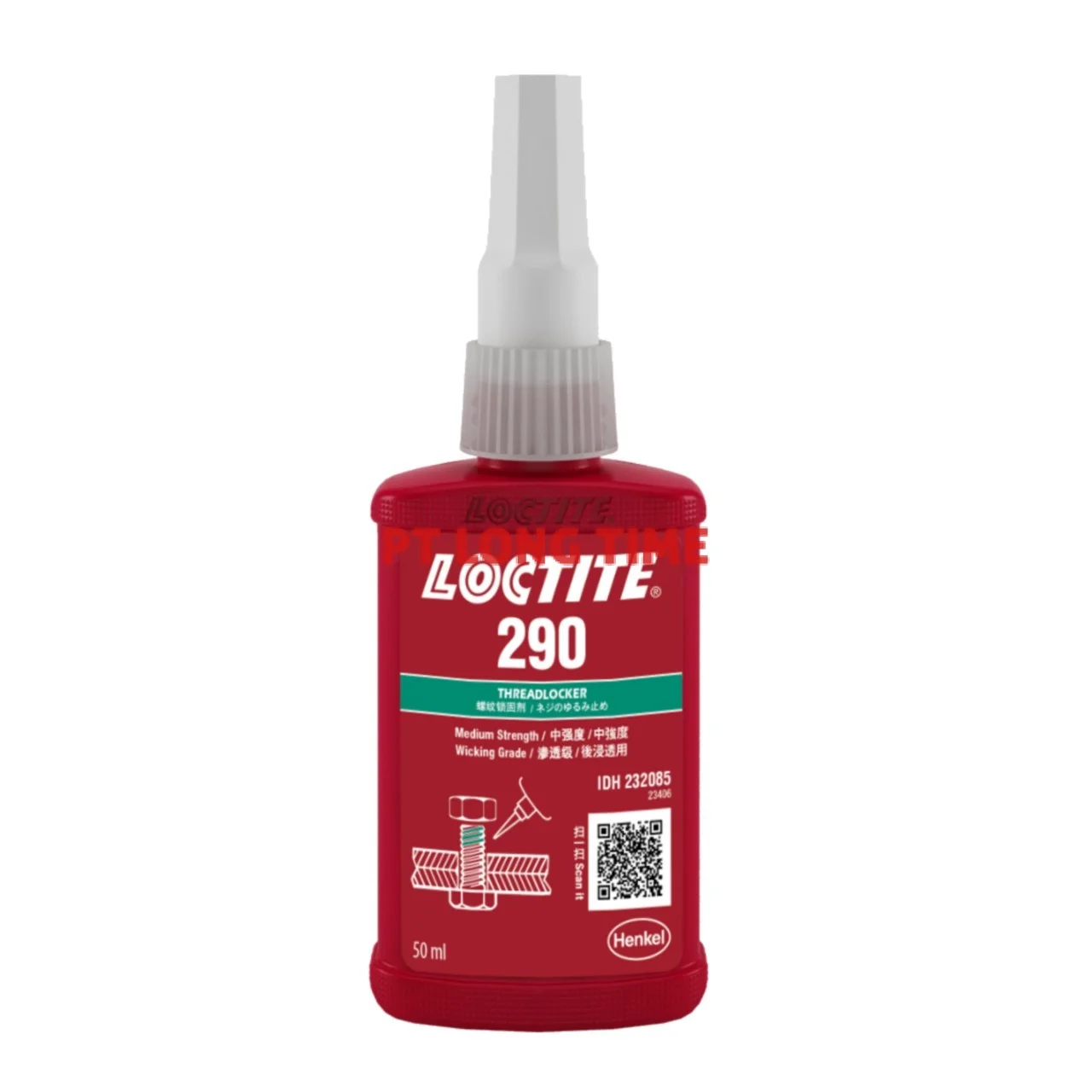

Wicking Grade Threadlocker WEICONLOCK AN 302-90 LOCTITE 290
Specification
Name
Wicking Grade Threadlocker WEICONLOCK AN 302-90 LOCTITE 290
SKU
AN 302-90
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | green | |
| Fluorescent | yes | |
| Viscosity | 10 - 20 mPa·s | |
| Gap bridging up to max. | 0,07 mm | |
| Breakaway torque | 15 - 25 Nm | |
| Prevail torque | 30 - 40 Nm | |
| Shear strength Nmm² (DIN 54452) | 8 - 12 N/mm² | |
| Handling strength | 5 - 20 min | |
| Final strength | (100 % strength) | 3 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1250 bar |
| M_6x10 | max. | 1000 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Application | Porosity Sealing, Threadlocking, Pre-assembled Fasteners |
| Physical Form | Liquid |
| Key Characteristics | Fluorescent, Strength: Medium to High, Heat Dissassembly, Wicking/Penetrating Level, Low Viscosity |
| Application Method | Post-assembly |
| Application Temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F) |
| Substrate | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Torque Resistance, M10 Steel Nuts/Bolts | 29.0 N·m (260.0 in/lb) |
| Movement Torque, M10 Steel Nuts/Bolts | 10.0 N·m (90.0 in/lb) |
| Viscosity, Speed 20 RPM | 40.0 mPa·s (cP) |
| Fixture Time | 20.0 min. |
| Color | Green |
