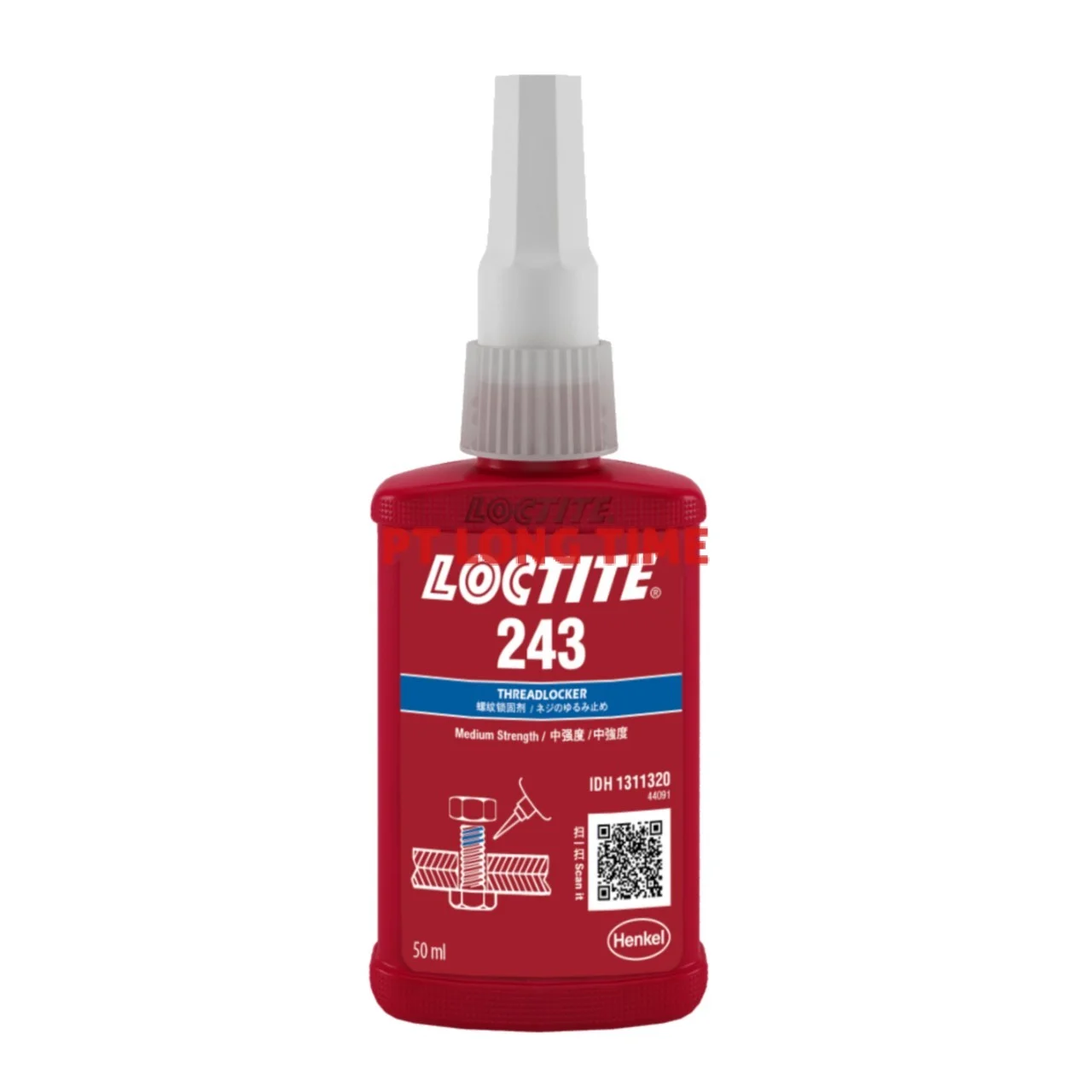

Threadlocker WEICONLOCK AN 302-43 LOCTITE 243
Specification
Name
Threadlocker WEICONLOCK AN 302-43 LOCTITE 243
SKU
AN 302-43
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | blue | |
| Fluorescent | yes | |
| For thread connections up to | M 36 | |
| Viscosity | 2.000 - 7.000 mt mPas | |
| Gap bridging up to max. | 0,25 mm | |
| Breakaway torque | 17 - 22 Nm | |
| Prevail torque | 8 - 12 Nm | |
| Shear strength Nmm² (DIN 54452) | 9 - 13 N/mm² | |
| Handling strength | 10 - 20 min. | |
| Final strength | (100 % strength) | 1- 3 h |
| Temperature resistance | -60 to +200 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 900 bar |
| M_10x16 | max. | 100 bar |
| Application | Threadlocking |
| Specific Gravity, @ 23.0 °C | 1.08 |
| Physical Form | Liquid |
| Key Characteristics | Fluorescent, Medium Strength, Removable Release, Thixotropic, No Primer Required, Oil Tolerant, General Purpose |
| Application Method | Manual, Dosing System |
| Application Temperature | -55.0 - 180.0 °C (-65.0 - 360.0 °F) |
| Institutional Approval/Specifications | NSF P1 Reg No: 123000 |
| Substrate | Metal, Passive Metal |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Torque Resistance, M10 Steel Nuts/Bolts | 5.0 N·m (40.0 in/lb.) |
| Movement Torque, M10 Steel Nuts/Bolts | ~26.0 N·m (230.0 in/lb.) |
| Viscosity, Speed 20 RPM | 2150.0 mPa.s (cP) |
| Fixture Time | 10.0 min. |
| Color | Blue |
