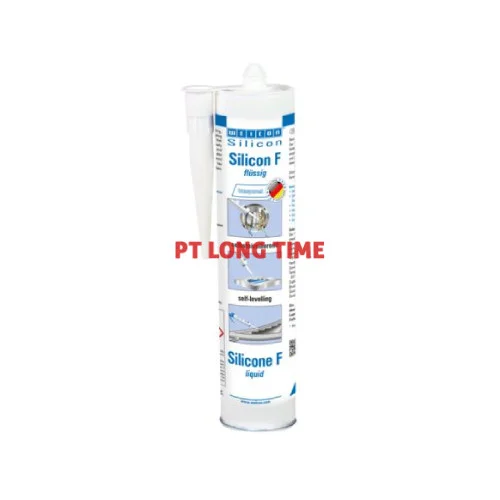

WEICON 10000492 Silicone F 310ML
The coating and casting compound WEICON Silicone F is liquid, self-levelling, spreadable, solvent-free, neutral-curing, weathering-, ageing-, and temperature-resistant up to +180 °C (+356 °F) and suitable for universal use. It can be used for elastic bonds, insulation and impregnation and even for the sealing and casting (max. 10 mm) of technical components. It adheres well to steel, aluminium, glass, ceramics, and many other materials. The product can be used in machine and system construction, in plastic processing, the energy and electrical industry, in exhibition construction and shopfitting, and in many other industrial areas.
Specification
Name
WEICON 10000492 Silicone F 310ML
SKU
10000492
Brand
Condition
New
| General Properties | |
|---|---|
| Base | 1-C polysiloxane (oxime) |
| Colour | Transparent, colourless |
| Texture | Liquid |
| Paintable | No |
| Cure Type | Moisture-curing |
| Viscosity | 30,000 mPa.s |
| Density | 1.03 g/cm3 |
| Curing Conditions | |
| Curing Environment | +5 to +40 Degree C, 30-95% RH |
| Processing Temperature | +5 to +40 Degree C |
| Curing Speed (first 24 h) | 2-3 mm |
| Skin-over Time | 15 min |
| Gap Bridging | Up to max. 3 mm |
| Mechanical Properties | |
| Tensile Strength (ISO 37 / S3A) | 1.8 N/mm2 |
| Elongation at Break (ISO 37 / S3A) | 600% |
| Elongation at 100% (ISO 37 / S3A) | 0.2 N/mm2 |
| Movement Absorption | Max. 20% |
| Volume Change (DIN 52451) | 4% |
| Hardness (Shore A, DIN ISO 7619) | 10 +- 5 |
| Thermal & Electrical Properties | |
| Temperature Resistance | -50 to +180 Degree C |
| Thermal Conductivity | 0.2 W/m*K |
| Electrical Resistance | 1*1014 m |
| Dielectric Strength | 17.0 kV/mm |
| Classification | |
| Building Material Class (DIN 4102) | B2 |
