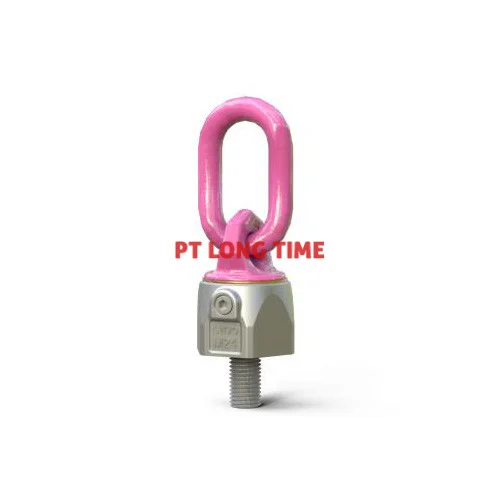

RUD VWBG-V-3.5t-M27 Load Ring Metric Thread
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service

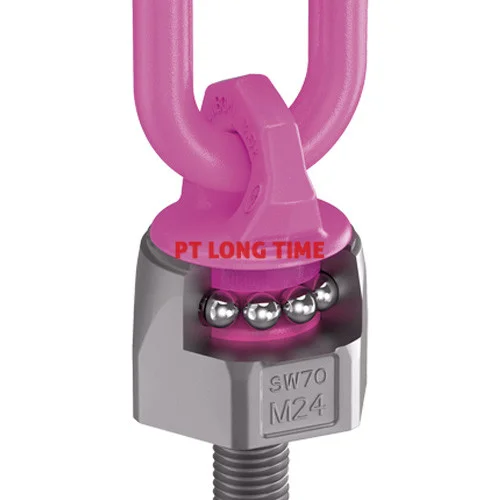

- Ball bearing
Specification
Name
RUD VWBG-V-3.5t-M27 Load Ring Metric Thread
SKU
VWBG-V-3.5t-M27
Brand
Condition
New

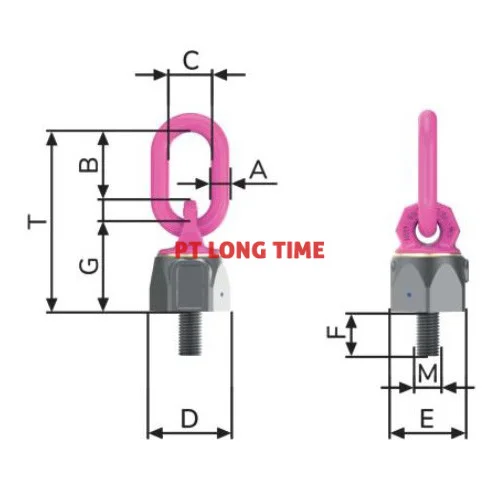

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 2.65 kg | 5.84 lbs |
| Nominal WLL | 3500 kg | 7700 lbs |
| T | 173 mm | 6-13/16" |
| A | 18 mm | 23/32" |
| B | 66 mm | 2-5/8" |
| C | 40 mm | 1-9/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 41 mm | 1-5/8" |
| G | 88 mm | 3-15/32" |
| M | M27 mm | M27 |
