RUD VWBG-V-5t-M30 Load Ring Metric Thread
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service
- Ball bearing
Specification
Name
RUD VWBG-V-5t-M30 Load Ring Metric Thread
SKU
VWBG-V-5t-M30
Brand
Condition
New

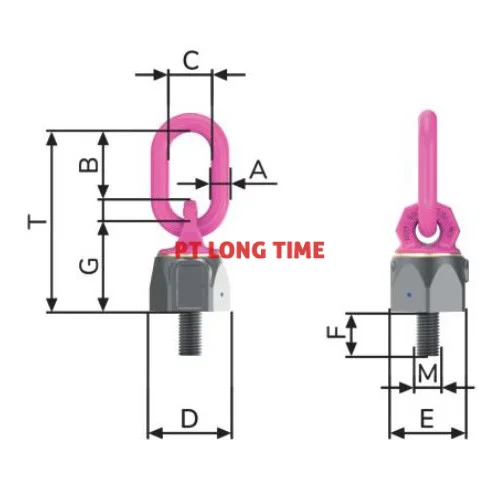

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 5.09 kg | 11.22 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 221 mm | 8-11/16" |
| A | 22 mm | 7/8" |
| B | 90 mm | 3-17/32" |
| C | 50 mm | 1-31/32" |
| D | 99 mm | 3-7/8" |
| E | 85 mm | 3-11/32" |
| F | 50 mm | 1-31/32" |
| G | 106 mm | 4-3/16" |
| M | M30 mm | M30 |
