RUD VWBG-V-1.8t-M18 Load Ring Metric Thread
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service
- Ball bearing
Specification
Name
RUD VWBG-V-1.8t-M18 Load Ring Metric Thread
SKU
VWBG-V-1.8t-M18
Brand
Condition
New

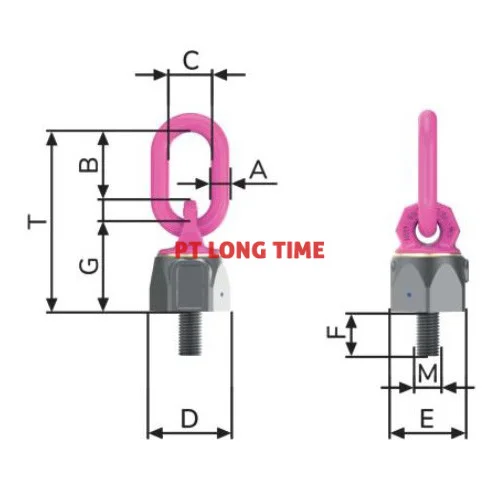

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 1.18 kg | 2.60 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |
| T | 137 mm | 5-3/8" |
| A | 13 mm | 1/2" |
| B | 54 mm | 2-1/8" |
| C | 35 mm | 1-3/8" |
| D | 62 mm | 2-7/16" |
| E | 55 mm | 2-5/32" |
| F | 27 mm | 1-1/16" |
| G | 67 mm | 2-5/8" |
| M | M18 mm | M18 |
