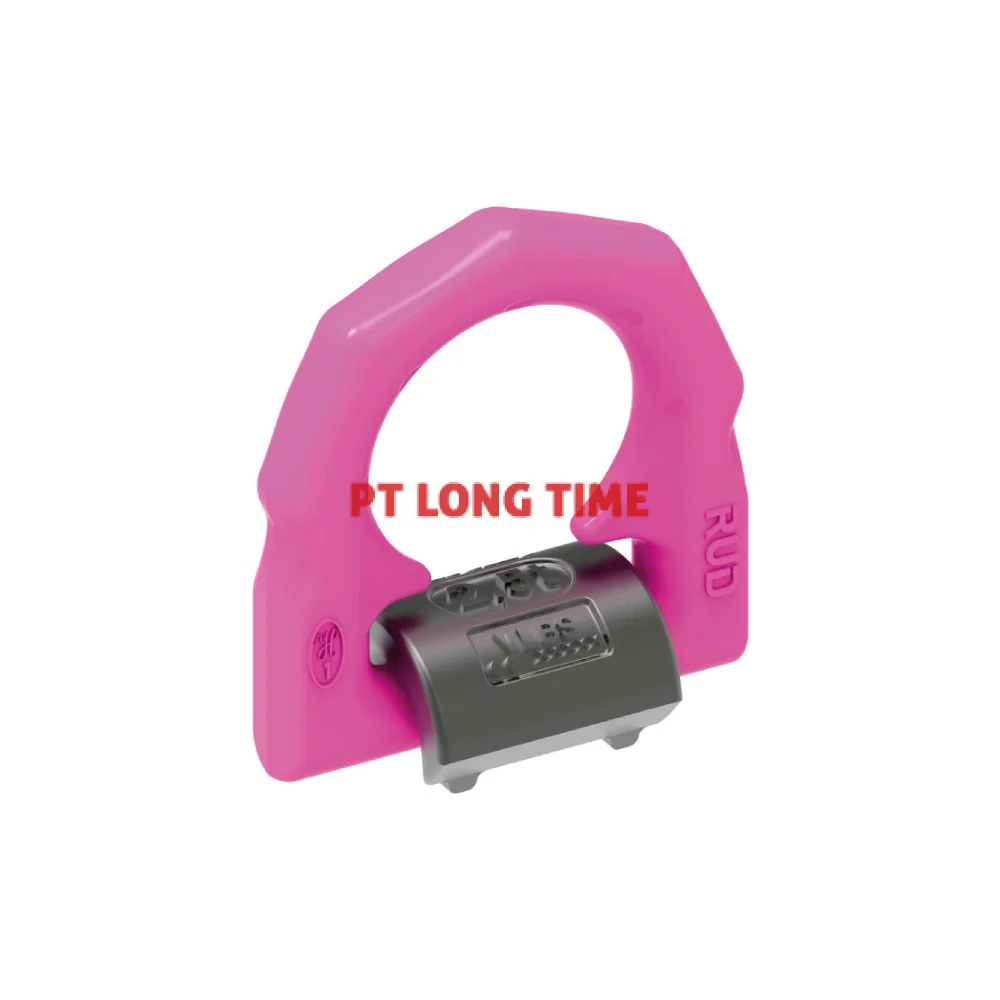

RUD VLBS-U-2.5t Load Ring for Welding with Spring
- Suspension ring pivots 180°
- Suspension ring & weld-on-block of the VLBS-U are undetachable
- Suspension ring can be angled into position (VLBS-U)
Specification
Name
RUD VLBS-U-2.5t Load Ring for Welding with Spring
SKU
VLBS-U-2.5t
Brand
Condition
New

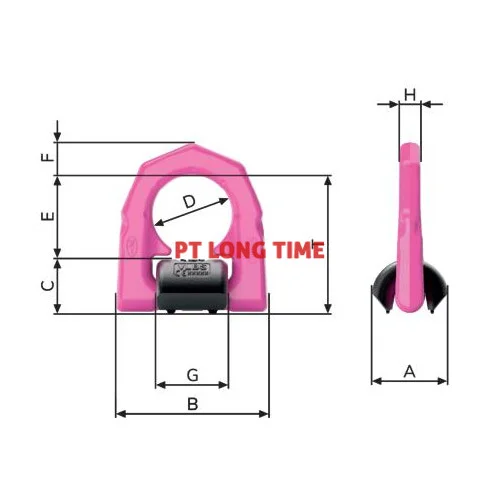

| Attribute | Value | Value |
|---|---|---|
| weight | 0.53 kg | 1.17 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| T | 75 mm | 2-15/16" |
| A | 38 mm | 1-1/2" |
| B | 77 mm | 3"-1/32" |
| C | 28 mm | 1-1/8" |
| D | 45 mm | 1-25/32" |
| E | 47 mm | 1-7/8" |
| F | 16 mm | 5/8" |
| G | 40 mm | 1-9/16" |
| H | 16 mm | 5/8" |
