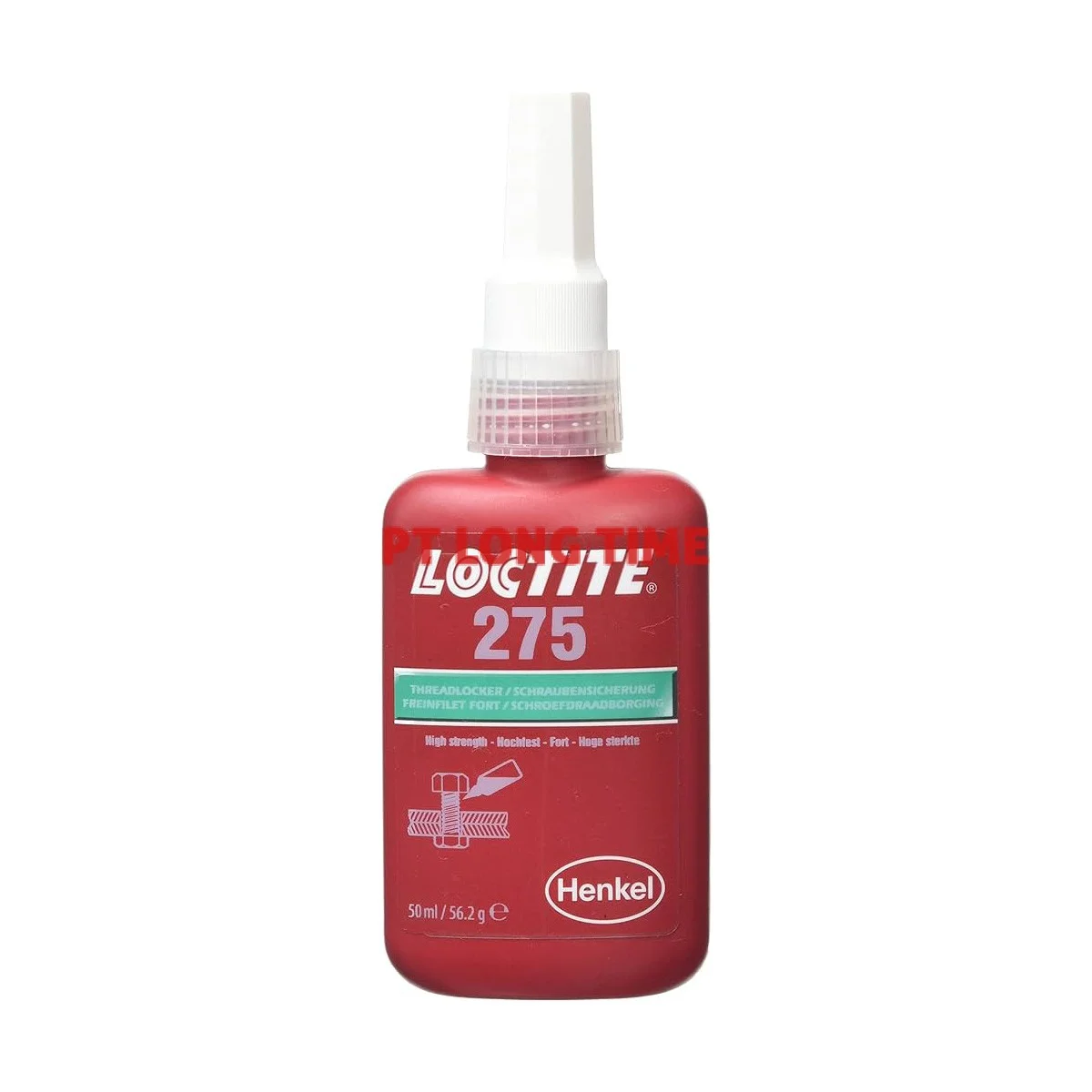

Pipe and Thread Sealing High Strengh WEICONLOCK AN 302-75 LOCTITE 275
High viscosity, high strength and hard to disassemble
Name
Pipe and Thread Sealing High Strengh WEICONLOCK AN 302-75 LOCTITE 275
SKU
AN 302-75
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Green | |
| Fluorescent | Yes | |
| For Thread Connections | Up to M 80 R 3" | |
| Viscosity | 14,000 - 24,000 mt mPa·s | |
| Gap Bridging uUp to max. | 0.30 mm | |
| Breakaway Torque | 40 - 50 Nm | |
| Prevail Torque | 40 - 50 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 15 - 25 N/mm² |
| Handling Strength | 15 - 30 min. | |
| Final Strength | (100% strength) | 3-6 h |
| Temperature Resistance | -60°C to +150°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. 1500 bar | |
| M_4x6 | Max. 1500 bar | |
| M_5x8 | Max. 1500 bar | |
| M_6x10 | Max. 500 bar | |
| M_8x12 | Max. 300 bar | |
| M_10x16 | Max. 200 bar | |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Green |
| Fixture time | 7.0 - 180.0 min. |
| Key characteristics | Thixotropic |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 5, speed 20 rpm | 5000.0 - 10000.0 mPa s (cP) |
