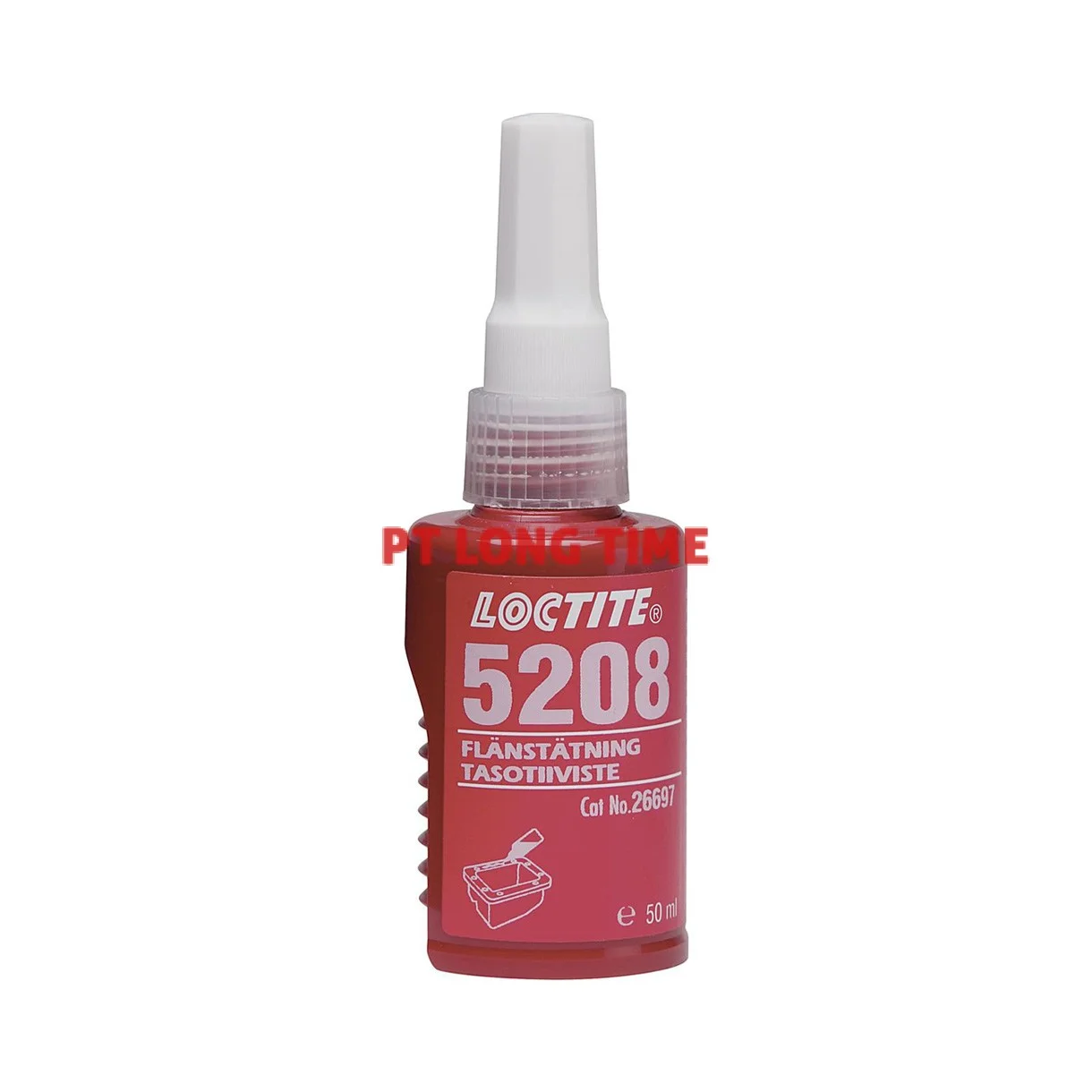

Flange Sealing High Strength WEICONLOCK® AN 305-74 LOCTITE 5208
Specification
Name
Flange Sealing High Strength WEICONLOCK® AN 305-74 LOCTITE 5208
Brand
Condition
New
| WEICON SPESIFICATION | ||
|---|---|---|
| Colour | Orange | |
| Fluorescent | Yes | |
| Viscosity | 30,000 - 100,000 ht mPa·s | |
| Gap bridging | Up to max. 0.5 mm | |
| Breakaway torque | 16 - 24 Nm | |
| Prevail torque | 5 - 10 Nm | |
| Shear strength (DIN 54452) | 5 - 10 N/mm² | |
| Handling strength | 15 - 30 min. | |
| Final strength | (100% strength) | 12 hours |
| Temperature resistance | -60°C to +180°C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 1500 bar |
| M_8x12 | Max. | 700 bar |
| M_10x16 | Max. | 600 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Red |
| Fixture time | 12.0 - 30.0 min. |
| Lab shear strength | 6.0 N/mm² |
| Recommended for use with | Metal: aluminum, Metal: steel |
| Viscosity, cone & plate Haake PK100, 2°, @ 25.0 °C Shear Rate 36 s-¹ | 12000.0 - 27000.0 mPa·s (cP) |
