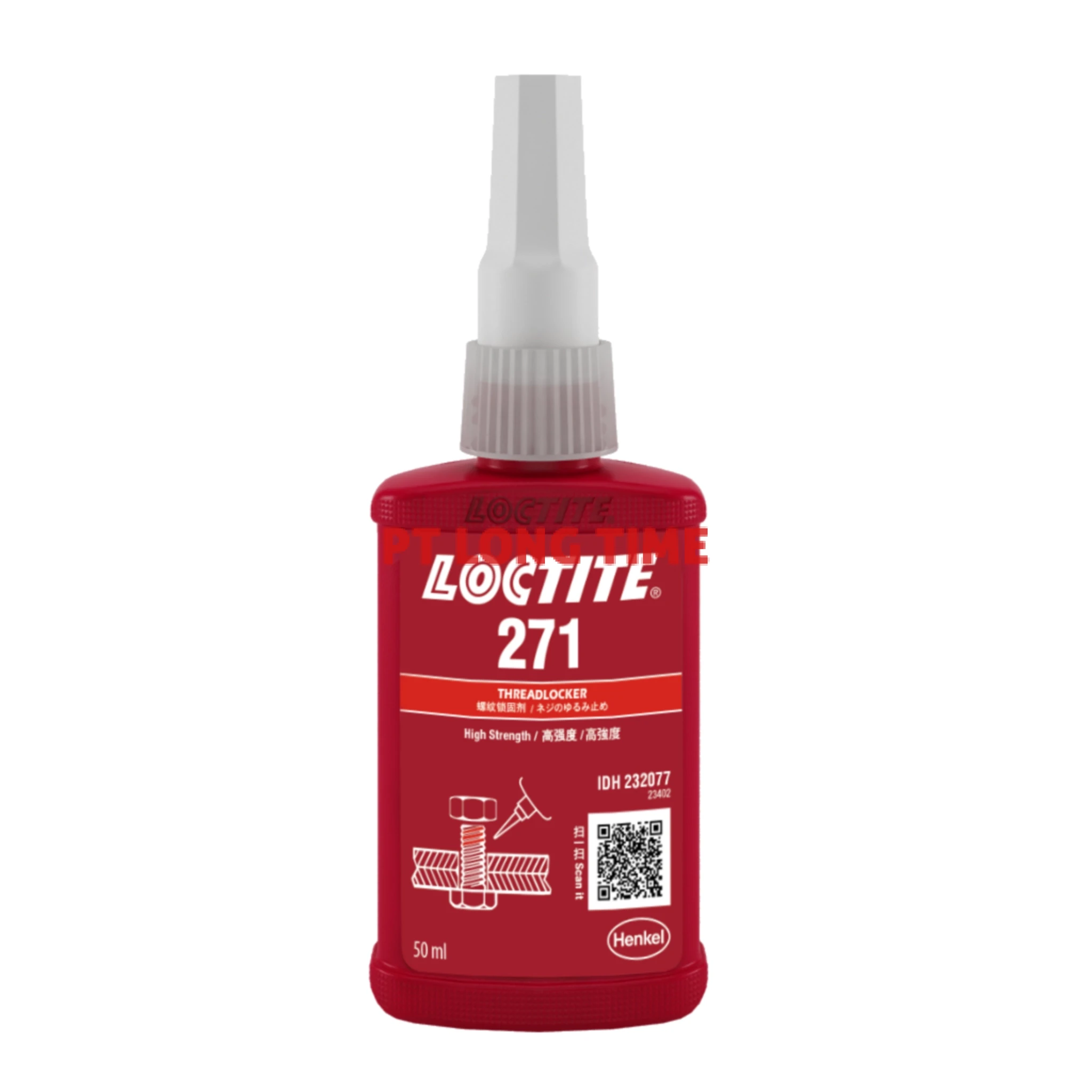

Locking of Threads and Stud Bolts WEICONLOCK AN 302-71 LOCTITE 271
Specification
Name
Locking of Threads and Stud Bolts WEICONLOCK AN 302-71 LOCTITE 271
SKU
AN 302-71
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | yes | |
| For thread connections up to | M 20 R ¾" | |
| Viscosity | 500 nt mPa·s | |
| Gap bridging up to max. | 0,15 mm | |
| Breakaway torque | 28 - 35 Nm | |
| Prevail torque | 50 - 65 Nm | |
| Shear strength Nmm² (DIN 54452) | 15 - 20 N/mm² | |
| Handling strength | 10 - 20 min. | |
| Final strength | (100 % strength) | 3-6 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1000 bar |
| M_6x10 | max. | 700 bar |
| M_8x12 | max. | 500 bar |
| M_10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Basic Chemical Materials | Methacrylate |
| Substrate | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 1, speed 10 rpm | 400.0 - 600.0 mPa.s (cP) |
| Fixture Time | 5.0 - 15.0 min. |
| Color | Red |
