Pipe and Flange Sealing 50ML WEICONLOCK AN 305-67 LOCTITE 567
WEICONLOCK AN 305-67 Pipe and flange sealing with PTFE, gap filling capacity max. 0.60 mm, high viscosity, low strength and easy disassembly.

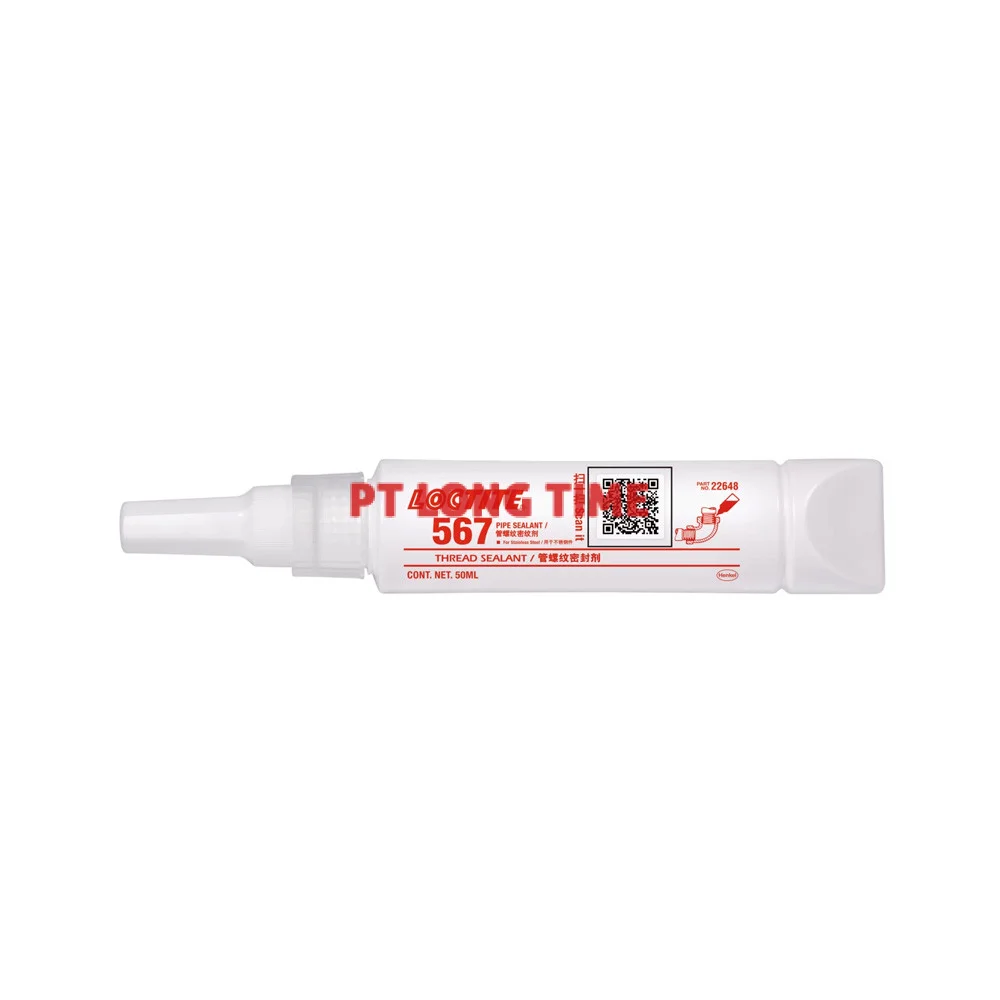

LOCTITE® 567 is a pale white, thixotropic, low-strength methacrylate thread sealant. The product cures in the absence of air and upon contact with metal, when confined in threaded assemblies up to M80/R3” in size. It is best suited for use on coarse metal threads and has a breakaway torque value of 1.7 Nm. The product viscosity ranges from 280,000 to 800,000 mPa·s, and it is suitable for use in temperatures from -55°C to +150°C. UL approved.
Specification
Name
Pipe and Flange Sealing 50ML WEICONLOCK AN 305-67 LOCTITE 567
SKU
AN 305-67
Brand
Condition
New
| WEICON SPESIFICATION | |
| Colour | white |
| Fluorescent | no |
| For thread connections up to | M 80 R 3" |
| Viscosity | 170.000 - 410.000 ht mPa·s |
| Gap bridging | up to max. 0,6 mm |
| Breakaway torque | 3 - 5 Nm |
| Prevail torque | 2 - 4 Nm |
| Shear strength N/mm² (DIN 54452) | 6 - 8 N/mm² |
| Handling strength | 120 - 240 min. |
| Final strength (100 %) | 24 - 72 h |
| Temperature resistance | -50 °C to +175 °C |
| Compressive strength M_3x6 | max. 1500 bar |
| Compressive strength M_4x6 | max. 1500 bar |
| Compressive strength M_5x8 | max. 1400 bar |
| Compressive strength M_6x10 | max. 1200 bar |
| Compressive strength M_8x12 | max. 500 bar |
| Compressive strength M_10x16 | max. 300 bar |
| LOCTITE SPESIFICATION | |
|---|---|
| Application | Pipe Sealing, Thread Sealing |
| Physical Form | Paste |
| Key Characteristics | Strength: Low Strength, Instant Low Pressure Sealing, Temperature: High Temperature, Thixotropic, Oil Tolerant |
| Application Method | Manual, Dosing System |
| Agency Approvals / Specifications | UL |
| Substrate | Thread Type: Coarse, Thread Type: Tapered, Metal, Metal: Aluminum, Metal: Steel - Galvanized Steel, Metal: Steel - Stainless Steel |
| Operating Temperature | -55.0 - 200.0 °C (-65.0 - 400.0 °F) |
| Technology | Acrylic |
| Curing Type | Anaerobic Curing |
| Breakaway Torque, Steel M10 | 12.0 N·m (110.0 in/lb) |
| Viscosity, 20 RPM | 540000.0 mPa·s |
| Color | White: Matte White |
