Cathodic Corrosion Protection with Approval WEICON Zinc Spray Bright Grade LOCTITE 7800

WEICON Zinc Spray "bright grade" is approved by the German TÜV and provides all metal surfaces with a long-lasting cathodic corrosion protection. It has a bright colour shade matching fresh hot-dip galvanization. It forms a fast-drying, adherent protective layer of microfine zinc flakes. The zinc flakes form a resistant protective layer even against extreme weather and environmental conditions. Even after more than 550 hours in the salt spray test according to DIN EN 9227, metal parts coated with WEICON Zinc Spray "bright grade" did not show any corrosion. WEICON Zinc Spray "bright grade" can be used for the coating of welded joints and drill holes, as a conductive intermediate layer for spot welding and wherever metal must be protected against corrosion.

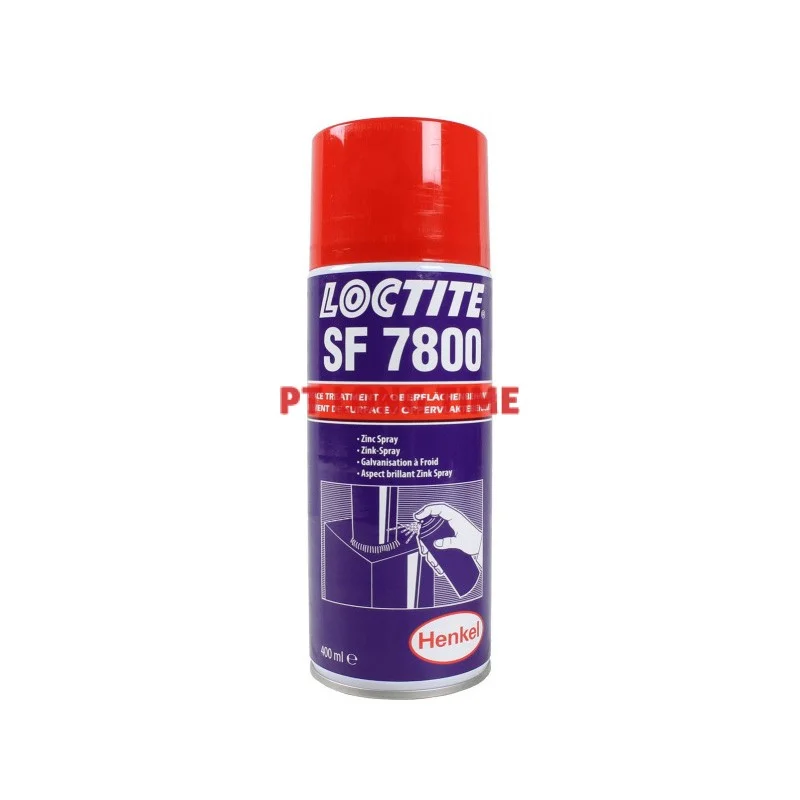

LOCTITE® SF 7800 is a grey, solvent-based, zinc and aluminum resin spray for protecting ferrous metals against corrosion. It’s typically used for touching up metal parts after welding, providing long-term protection of metal assemblies and restoring protection to repaired galvanized parts, such as crash barriers, tubes, flanges, tanks and panels. It’s also suitable for restoring protection to repaired galvanized parts. It cures at room temperature by solvent evaporation.

  • Long term corrosion protection for galvanized parts
  • Operating range: -50°C to 550°C (-58°F to 1022°F)
  • -50 to +550°C operating range
Specification
Name
Cathodic Corrosion Protection with Approval WEICON Zinc Spray Bright Grade LOCTITE 7800
Brand
Condition
New
WEICON SPESIFICATION
Colour Matching hot-dip galvanizations
Application Area Indoor and outdoor use
Binder Modified acrylic resin
Pigment Flaky zinc and aluminium pigments
Pigment Purity Ca. 99.9% Zn / ca. 99.5% Al
Metal Content in Dry Film ~70%
Processing Temperature +5°C to +35°C, ideally +18°C to +35°C
Recommended Primer Zinc Spray
Consumption per 1.5 Crosswise Application 150 ml/m²
Layer Thickness with 1.5 Crosswise Applications Approx. 20 - 40 µm
Dust Dry 15 min
Cured After 10-12 h
Paintable After 24 h
Cross Cutting Test (DIN 53151/ISO 2409) 0 to 1
Abrasion-Resistant Yes
Cylindrical Mandrel Bend Test (DIN EN ISO 1519) No hairline cracking
Topcoat Required Not required
Density 1.0 g/cm³
Temperature Resistance -50°C to +300°C
Shelf Life 24 months



LOCTITE SPESIFICATION
Color Gray
