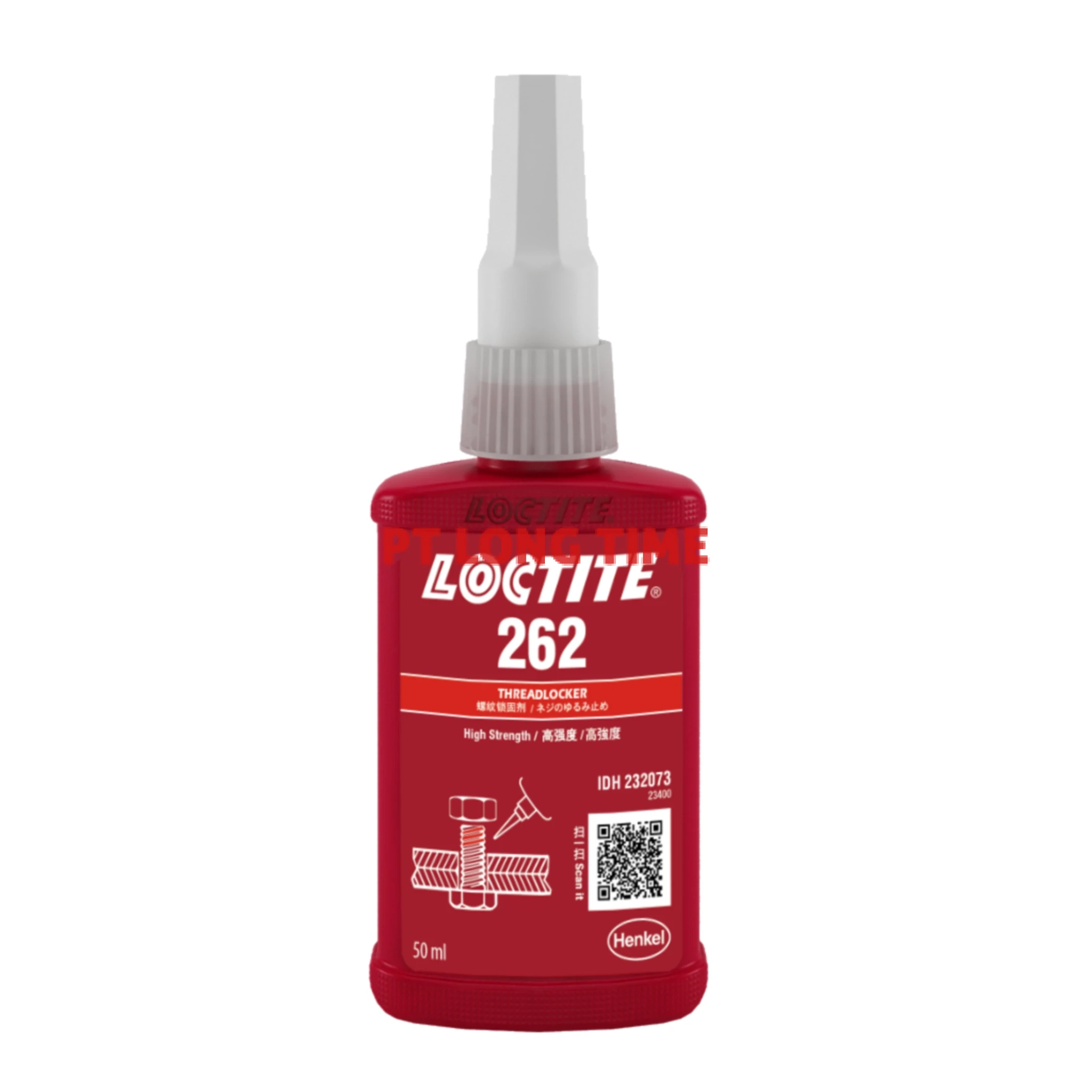

Threadlocker High Strength WEICONLOCK AN 302-62 LOCTITE 262
Specification
Name
Threadlocker High Strength WEICONLOCK AN 302-62 LOCTITE 262
SKU
AN 302-62
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | no | |
| For thread connections up to | M 36 | |
| Viscosity | 1.500 - 6.500 mt mPa·s | |
| Gap bridging up to max. | 0,25 mm | |
| Breakaway torque | 20 - 25 Nm | |
| Prevail torque | 40 - 55 Nm | |
| Shear strength Nmm² (DIN 54452) | 10 - 15 N/mm² | |
| Handling strength | 10 - 20 min. | |
| Final strength | (100 % strength) | 3-6 h |
| Temperature resistance | -60 to +150 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 600 bar |
| M_10x16 | max. | 1200 bar |
| LOCTITE SPESIFICATION | |
| Basic Chemical Materials | Methacrylate |
| Key Characteristics | Thixotropic |
| Institutional Approval/Specifications | NSF |
| Substrate | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 °C Spindle 3, speed 20 rpm, Helipath | 1200.0 - 2400.0 mPa.s (cP) |
| Fixture Time | 8.0 - 180.0 min. |
| Color | Red |
