Mineral-Filled Epoxy Resin System For Wear Protection Coating WEICON Ceramic W LOCTITE 7230

The epoxy resin system WEICON Ceramic W provides high wear protection and high abrasion resistance. It is chemical-resistant and has a high temperature resistance up to +230 °C; for a short period of time even up to +250 °C. Ceramic W is non-sagging, can be spread with a spatula. It can be applied on vertical surfaces and even overhead. It is suitable for the bonding or lining of aluminium oxide stones in mill construction, for the lining of heavily stressed pump housings, as wear protection for slide bearings, slides and pipes and wherever darker-coloured products are not suitable for optical reasons. The product can be used in machine and system construction, mill construction, apparatus engineering, and in many other industrial areas

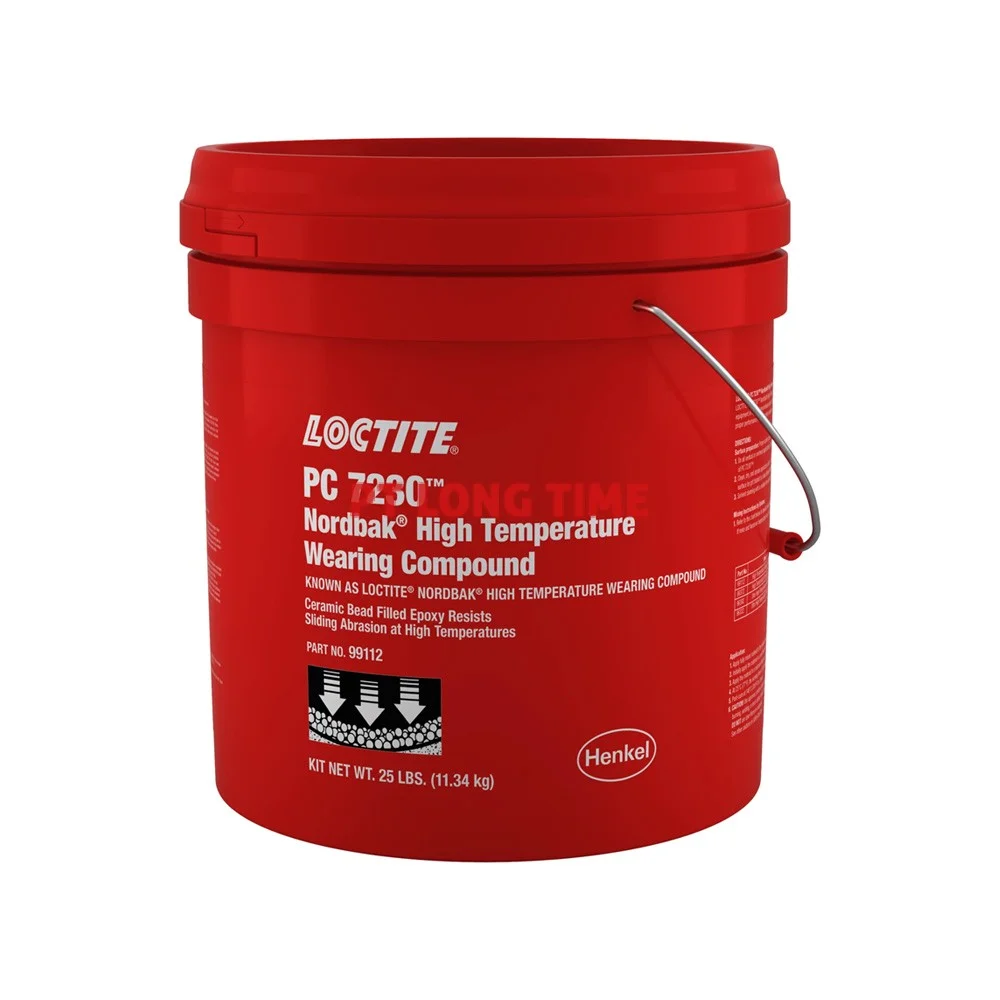

LOCTITE® PC 7230 is a 2-part, grey, ceramic-filled, trowelable epoxy compound surface coating with high temperature resistance, from -30 to +230°C. The compound protects processing equipment from coarse particle abrasion by creating a sacrificial coating to preserve the structural integrity of the original substrate. Trowelable consistency makes this product a good choice for application to overhead and vertical surfaces.

  • Easy to use and trowelable
  • High temperature resistance
  • Ceramic-filled to protect against coarse particle abrasion
  • Suitable for overhead and vertical application
Specification
Name
Mineral-Filled Epoxy Resin System For Wear Protection Coating WEICON Ceramic W LOCTITE 7230
Brand
Condition
New
WEICON SPESIFICATION
Base Epoxy
Filler Aluminium oxide
Texture Pasty
Colour White
Processing Temperature +15°C to +40°C
Component Temperature >3°C above dew point
Relative Air Humidity <85%
Mixing Ratio by Weight 100:25
Mixing Ratio by Volume 100:26
Viscosity of the Mixture at +25°C 120,000 mPa·s
Density of the Mixture 1.9 g/cm³
Consumption Layer Thickness 1.0 mm
Max. Layer Thickness per Step 10 mm
