WEICON SF has a DNV certificate and is particularly suitable for quick repairs and repair works on leaky pipelines, housings and gears, for anchorages, and for the production of fixing devices. The epoxy resin can be used in machine construction, tool construction, model and mould making, the maritime industry and in many other applications.

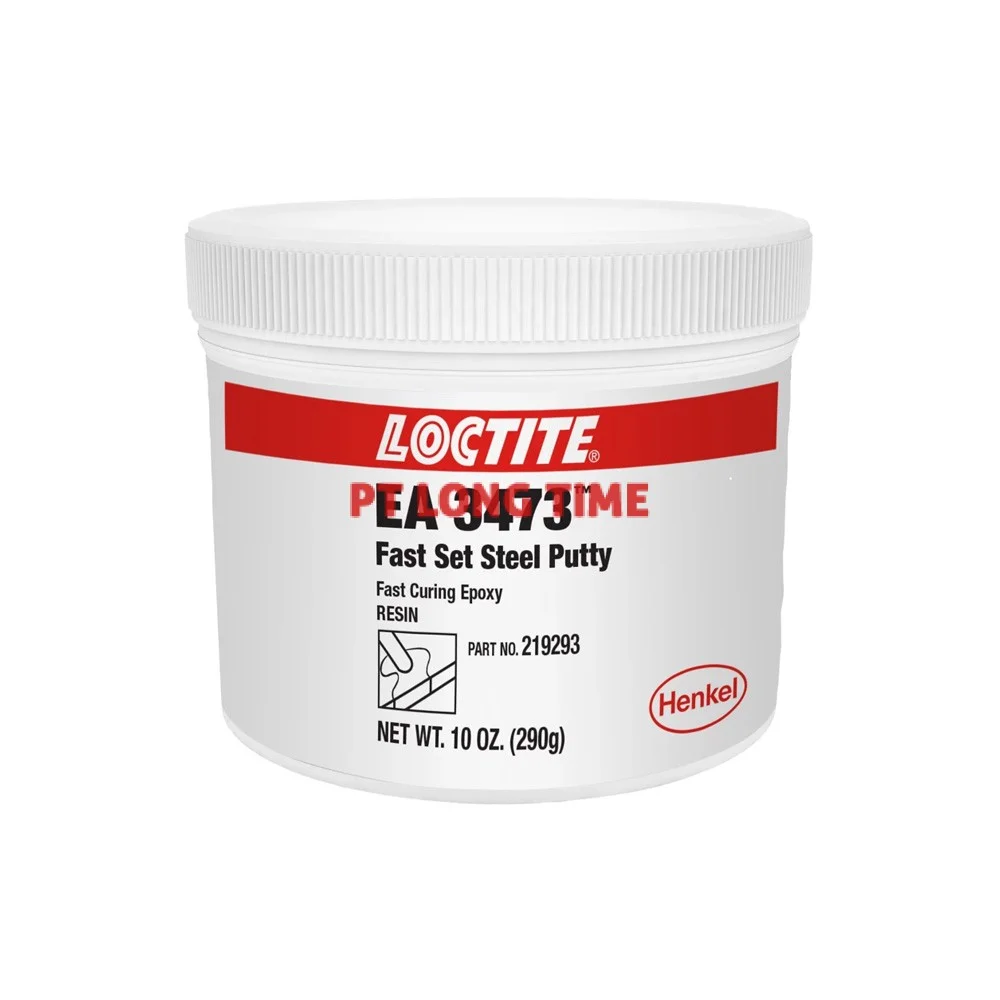

LOCTITE® EA 3473 is a 2-part, steel-filled epoxy adhesive perfect for repairing worn parts such as shafts, housings, keyways and flanges, as well as broken or damaged parts such as castings, pipes or fabrications. It can be used for filling cavities, renewing stripped threads, levelling machinery, repairing cast-steel plates, making core molds, applying a sacrificial coating or sealing leaking pipes. Ideal for emergency repairs.
- Rebuilds worn steel parts
- Hardens in 10 minutes
- Non-sagging
- Ideal for emergency repairs
| WEICON SPESIFICATION | |
| Base | Epoxy |
| Filler | Steel |
| Texture | Pasty |
| Colour | Dark grey |
| Processing Temperature | +15°C to +40°C |
| Component Temperature | >3°C above dew point |
| Relative Air Humidity | < 85% |
| Mixing Ratio by Weight | 100:33 |
| Mixing Ratio by Volume | 100:54 |
| Viscosity of the Mixture at +25°C | 800,000 mPa·s |
| Density of the Mixture | 1.8 g/cm³ |
| Consumption (Layer Thickness 1.0 mm) | 1.8 kg/m² |
| Max. Layer Thickness per Step | 10 mm |
| Pot Life at 20°C, 500 g Batch | 5 min. |
| Additional Layer after (35% Strength) | 20 min. |
| Working Strength after (80% Strength) | 1 h |
| Final Strength (100% Strength) | 6 h |
| Shrinkage | 0.82% |
