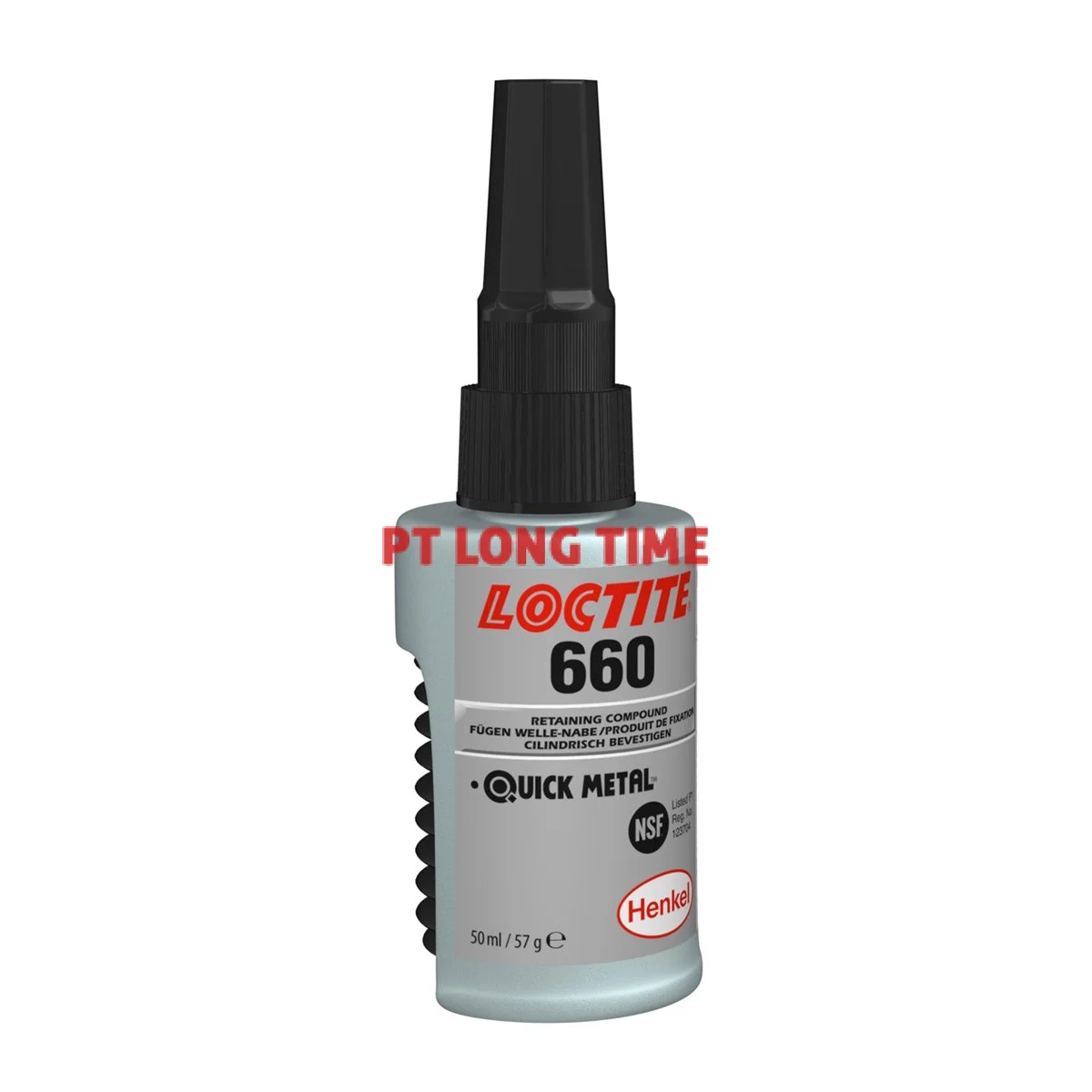

Retaining Cylindrical Assemblies WEICONLOCK® AN 306-60 LOCTITE 660
Specification
Name
Retaining Cylindrical Assemblies WEICONLOCK® AN 306-60 LOCTITE 660
SKU
AN 306-60
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Silver | |
| Fluorescent | No | |
| For Thread Connections up to | R 2" | |
| Viscosity | 150,000 - 900,000 ht mPa·s | |
| Gap Bridging | Up to max. 0.5 mm | |
| Breakaway Torque | 35 - 45 Nm | |
| Prevail Torque | 10 - 20 Nm | |
| Shear Strength (Nmm²) | 25 - 30 N/mm² (DIN 54452) | |
| Handling Strength | 15 - 30 Min. | |
| Final Strength | (100% Strength) | 3 - 6 Hrs. |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M 3x6 | max. | 1500 bar |
| M 4x6 | max. | 1500 bar |
| M 5x8 | max. | 1250 bar |
| M 6x10 | max. | 500 bar |
| M 8x12 | max. | 300 bar |
| M 10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Application | Repairing, Press Fitting, Retaining |
| Physical Form | Paste |
| Shear Strength, Steel | 23.0 N/mm² (3335.0 psi) |
| Key Characteristics | Strength: High Strength, Gap Filling, Thixotropic |
| Application Method | Manual |
| Gap Filling | 0.25 - 0.5 mm |
| Agency Approval/Specification | NSF P1 |
| Substrate | Metal: Steel |
| Operating Temperature | -65.0 - 300.0 degree F (-55.0 - 150.0 degree C) |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity | 250,000.0 mPa·s (cP) |
| Fixture Time | 15.0 min. |
| Color | Gray: Silver |
