Aluminium Filled Epoxy Resin System for Repairs and Gap Compensation WEICON F2 LOCTITE 3466
The epoxy resin system WEICON F2 is suitable for the casting of models, moulds and templates, for the repair of porous and damaged castings, for the production of prototypes and holding devices, and for pouring out swages to test precision. It can be used in tool construction, model and mould making, and in many other industrial applications.

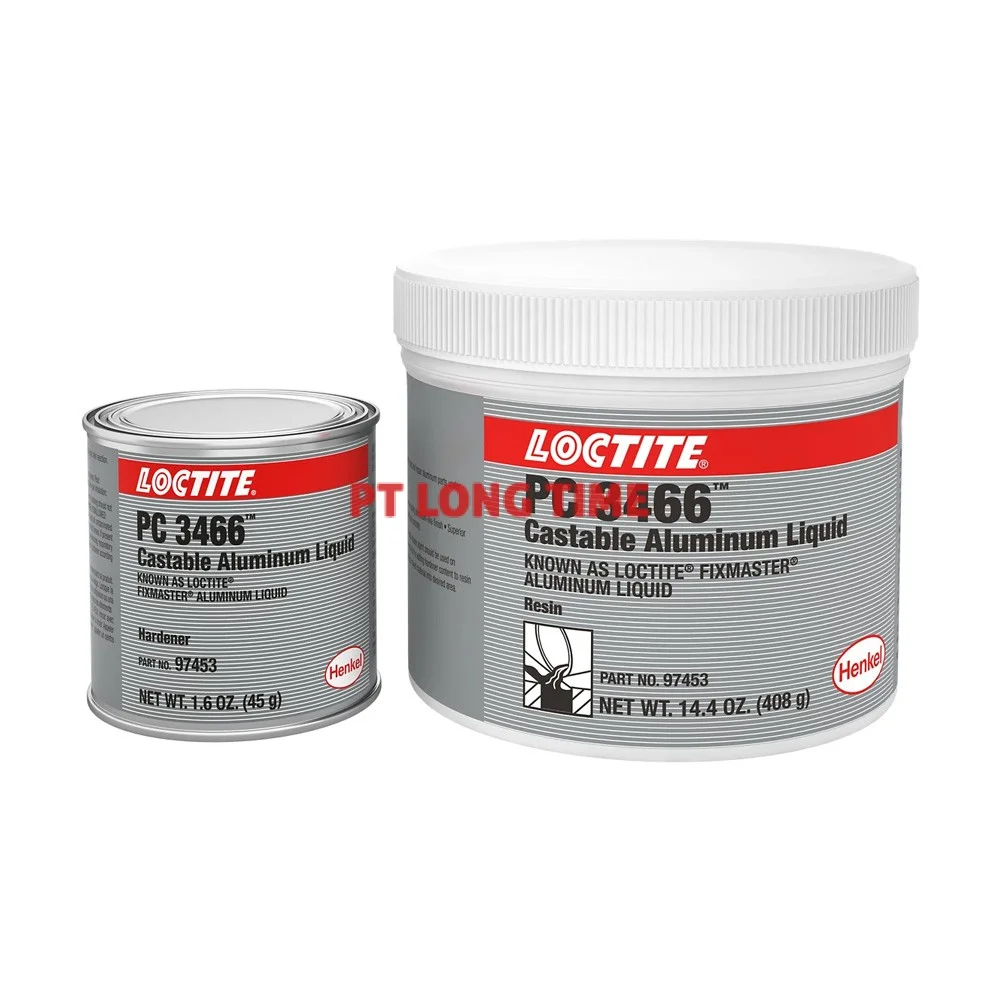

LOCTITE® PC 3466 is a gray, 2-part, room temperature-cure, pourable epoxy system heavily reinforced with aluminum powder. It is used for filling or leveling equipment, making aluminum forming dies, casting aluminum parts and pouring molds, parts and fixtures. It is normally used in applications with an operating range of -20°F to +200°F (-30°C to +95°C).
- Castable liquid - repairs hard to reach areas
- Forms a non-rusting aluminum-like finish
- Superior adhesion - bonds well to all metal substrates
- Rebuilds worn parts fast - limits downtime
- Suitable for use in potting applications
Specification
Name
Aluminium Filled Epoxy Resin System for Repairs and Gap Compensation WEICON F2 LOCTITE 3466
Brand
Condition
New
| WEICON SPESIFICATION | |
| Base | Epoxy |
| Filler | Aluminium |
| Texture | Flowable |
| Colour | Aluminium metallic |
| Processing Temperature | +15°C to +40°C |
| Component Temperature | >3 °C above dew point |
| Relative Air Humidity | < 85% |
| Mixing Ratio by Weight | 100:14 |
| Mixing Ratio by Volume | 100:30 |
| Viscosity of the Mixture at +25°C | 200,000 mPa·s |
| Density of the Mixture | 1.6 g/cm³ |
| Consumption (Layer Thickness 1.0 mm) | 1.6 kg/m² |
| Max. Layer Thickness per Step | 10 mm |
| Pot Life at 20°C, 500 g Batch | 60 min. |
| Additional Layer after (35% Strength) | 12 h |
| Working Strength after (80% Strength) | 26 h |
| Final Strength (100% Strength) | 72 h |
| Shrinkage | 0.16% |
| LOCTITE SPESIFICATION | |
| Shear Strength, Steel (sandblasting) | 2675.0 psi |
| Compressive Strength, ISO 604 | 11500.0 psi (79.0 N/mm²) |
| Component Number | 2 Part |
| Technology | Epoxy |
| Drying Type | Room Temperature (Ambient) Cure |
| Full Cure Time | 6.0 hr. |
| Working Time | 20.0 min. |
| Resin | |
| Color, Resin | Gray |
| Mixture | |
| Color, Mixture | Gray |
| Hardener | |
| Color, Hardener | Blue |
