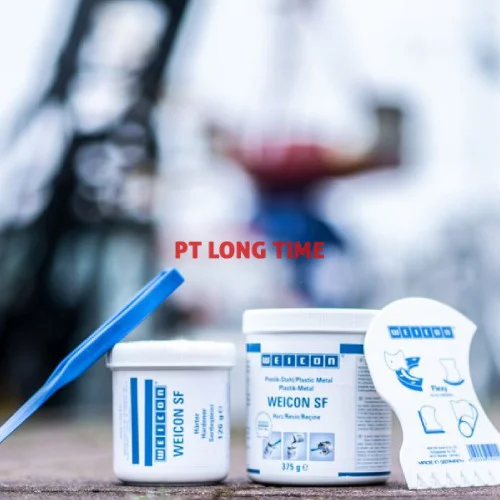

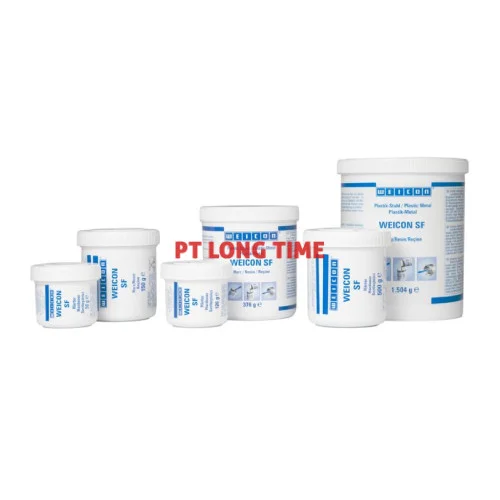

WEICON 10009769 SF Steel Filled Epoxy Resin System for Repairs and Moulding DNV Certified (0.5Kg)
WEICON SF has a DNV certificate and is particularly suitable for quick repairs and repair works on leaky pipelines, housings and gears, for anchorages, and for the production of fixing devices. The epoxy resin can be used in machine construction, tool construction, model and mould making, the maritime industry and in many other applications.
Specification
Name
WEICON 10009769 SF Steel Filled Epoxy Resin System for Repairs and Moulding DNV Certified (0.5Kg)
SKU
4024596002589
Brand
Condition
New
| Mechanical Properties After Curing (24 h RT + 4 h at +60 °C) | |
|---|---|
| Tensile Strength (DIN EN ISO 527-2) | 37 MPa |
| Elongation at Break (DIN EN ISO 527-2) | 1.0 % |
| E-Modulus (Tensile) (DIN EN ISO 527-2) | 3500–4500 MPa |
| Compressive Strength (DIN EN ISO 604) | 52 MPa |
| Bending Strength (DIN EN ISO 178) | 41 MPa |
| Impact Strength (DIN EN ISO 179-1/1eU) | 4.5 kJ/m² |
| Hardness (Shore D) (DIN ISO 7619) | 82±3 |
| Adhesive Strength (DIN EN ISO 4624) | 21 MPa |
| Taber Test (DIN ISO 9352, H18, 1 kg, 1000 rotations) | 0.6 g / 0.3 cm³ |
| Lap Shear Strength (DIN EN 1465, thickness 1.5 mm) | |
| Steel 1.0338 (Sandblasted) | 13 MPa |
| Stainless Steel V2A (Sandblasted) | 16 MPa |
| Aluminium (Sandblasted) | 8 MPa |
| Galvanized Steel | 5 MPa |
| Thermal Parameters | |
| Temperature Resistance | -35 °C to +90 °C |
| Tg After Curing (Room Temperature, DSC) | +41 °C |
| Heat Deflection Resistance (DIN EN ISO 75-2) | +40 °C |
| Thermal Conductivity (DIN EN ISO 22007-4) | 0.6 W/m·K |
| Heat Capacity (DIN EN ISO 22007-4) | 0.86 J/(g·K) |
| Electrical Parameters | |
| Resistance (DIN EN 62631-3-1) | 1.3·10¹² Ω·m |
| Magnetic | Yes |
| Approvals / Guidelines | |
| DNV | DNV Rules for Classification |
| ISSA Code | 75.509.13/14 |
| IMPA Code | 812931/32 |
| MIL-Spec | Comply with MIL-A-52194 |
