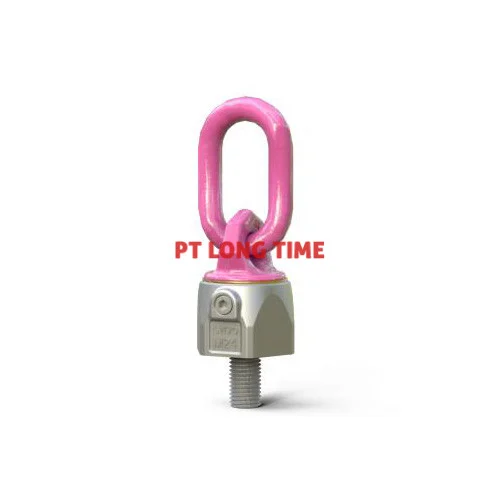

RUD VWBG-V-0.3t-M8 Load Ring Metric Thread
- Rotating 360°, pivoting 230°
- Optical markings for easy determination for withdraw from service
- Ball bearing
Specification
Name
RUD VWBG-V-0.3t-M8 Load Ring Metric Thread
SKU
VWBG-V-0.3t-M8
Brand
Condition
New

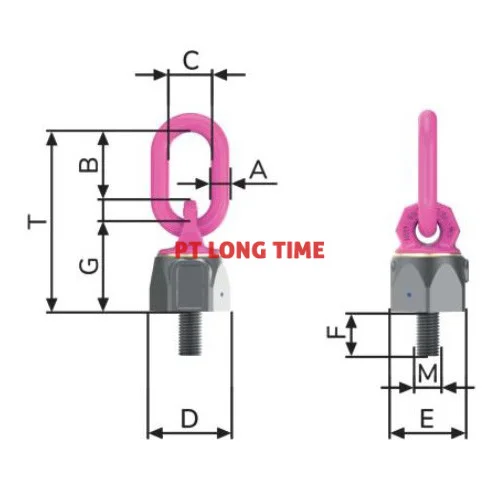

| Attribute | Value (Metric) | Value (Imperial) |
|---|---|---|
| Weight | 0.18 kg | 0.40 lbs |
| Nominal WLL | 300 kg | 660 lbs |
| T | 76 mm | 3" |
| A | 8 mm | 5/16" |
| B | 31 mm | 1-7/32" |
| C | 29 mm | 1-5/32" |
| D | 30 mm | 1-3/16" |
| E | 27 mm | 1-1/16" |
| F | 13 mm | 1/2" |
| G | 36 mm | 1-27/64" |
| M | M8 mm | M8 |
