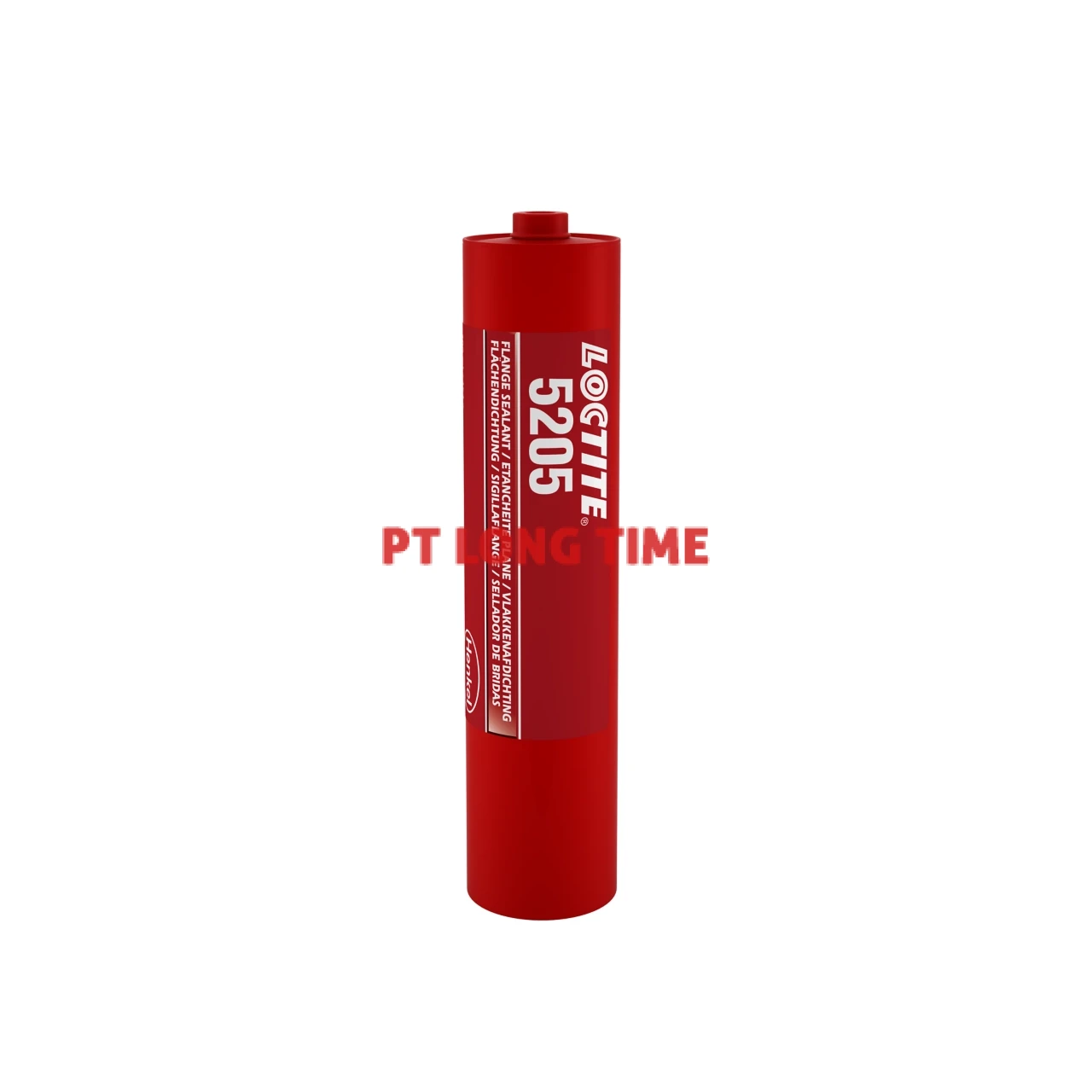

Retaining Cylindrical Assemblies WEICONLOCK® AN 306-60 LOCTITE 5205
Specification
Name
Retaining Cylindrical Assemblies WEICONLOCK® AN 306-60 LOCTITE 5205
SKU
AN 306-60
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Silver | |
| Fluorescent | No | |
| For Thread Connections up to | R 2" | |
| Viscosity | 150,000 - 900,000 ht mPa·s | |
| Gap Bridging | Up to max. 0.5 mm | |
| Breakaway Torque | 35 - 45 Nm | |
| Prevail Torque | 10 - 20 Nm | |
| Shear Strength (Nmm²) | 25 - 30 N/mm² (DIN 54452) | |
| Handling Strength | 15 - 30 Min. | |
| Final Strength | (100% Strength) | 3 - 6 Hrs. |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M 3x6 | max. | 1500 bar |
| M 4x6 | max. | 1500 bar |
| M 5x8 | max. | 1250 bar |
| M 6x10 | max. | 500 bar |
| M 8x12 | max. | 300 bar |
| M 10x16 | max. | 200 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Red |
| Fixture time | 25.0 min. |
| Lab shear strength | 3.0 N/mm² |
| Recommended for use with | Metal: Aluminum, Metal: Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 7, speed 2.5 rpm, Helipath | 200000.0 - 490000.0 mPa·s (cP) |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 7, speed 20 rpm, Helipath | 60000.0 - 160000.0 mPa·s (cP) |
| Viscosity, cone & plate Haake PK100, 2 degree , @ 25.0 degree C Shear Rate 20 s-¹ | 30000.0 - 75000.0 mPa·s (cP) |
