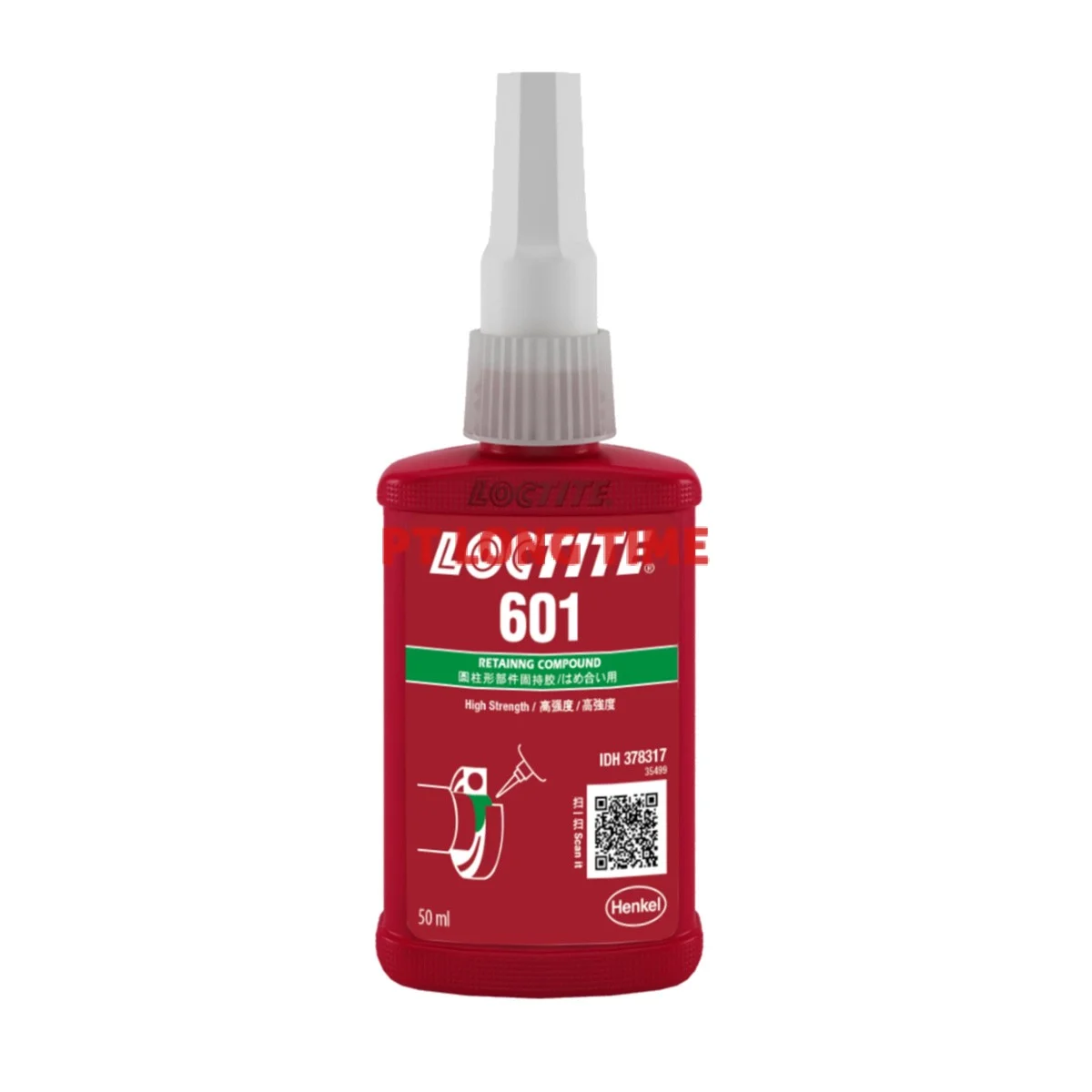

Retaining Cylindrical Assemblies WEICONLOCK® AN 306-01 LOCTITE 601
Specification
Name
Retaining Cylindrical Assemblies WEICONLOCK® AN 306-01 LOCTITE 601
SKU
AN 306-01
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Green | |
| Fluorescent | Yes | |
| For Thread Connections up to | M 12 | |
| Viscosity | 125 nt mPa·s | |
| Gap Bridging | Up to max. 0.1 mm | |
| Breakaway Torque | 25 - 30 Nm | |
| Prevail Torque | 50 - 60 Nm | |
| Shear Strength (Nmm²) | 17-22 N/mm² (DIN 54452) | |
| Handling Strength | 10 - 20 Min. | |
| Final Strength | (100% Strength) | 2-4 Hrs. |
| Temperature Resistance | -60°C to +150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M 3x6 | max. | 1500 bar |
| M 4x6 | max. | 1500 bar |
| M 5x8 | max. | 1500 bar |
| M 6x10 | max. | 900 bar |
| M 8x12 | max. | 800 bar |
| M 10x16 | max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Chemical Base | Methacrylate |
| Diametrical Clearance | <0.1 mm |
| Substrate | Metal: Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 1, speed 20 rpm | 100.0 - 150.0 mPa·s (cP) |
| Fixture Time | 25.0 min. |
| Color | Green |
