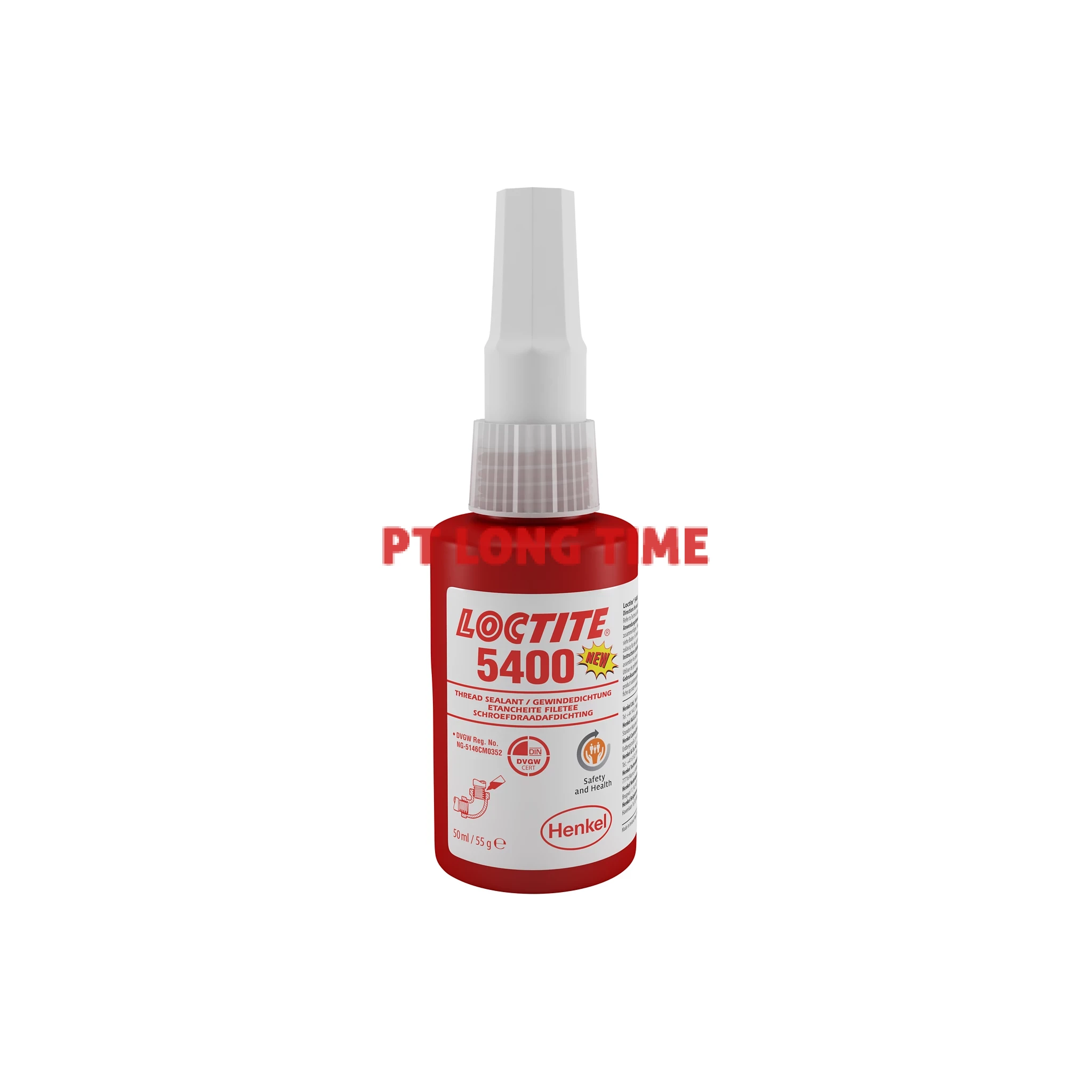

Pipe and Flange Sealing WEICONLOCK® AN 301-72 LOCTITE 5400
Specification
Name
Pipe and Flange Sealing WEICONLOCK® AN 301-72 LOCTITE 5400
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | White | |
| Thread Connections | Up to M 80 R 3" | |
| Gap Bridging | Up to max. 0.3 mm | |
| Breakaway Torque | 5 - 10 Nm | |
| Prevail Torque | 4 - 6 Nm | |
| Shear Strength | 5 - 7 N/mm² (DIN 54452) | |
| Handling Strength | 15 - 30 min | |
| Final Strength | (100% strength) | 6 - 12 hours |
| Temperature Resistance | -60°C to +150°C | |
| LOCTITE SPESIFICATION | |
|---|---|
| Sizes | 50 ml |
| Colour | Yellow |
| Fluorescence | Present |
| Disassembly strength | Medium |
| Chemical basis | Methacrylate |
| Breakaway torque | 19 Nm |
| Maximum thread size | M80/R3" |
| Viscosity | 5,000 - 20,000 mPa·s |
| Temperature range | -55°C to +150°C |
