MR400 DC Arc Welding Machine OTC
Stable Arc
- Stable and smooth arc by constant current characteristics.
Heavy Duty Cycle
- Especially suitable for medium and thick plate welding (Ratedd duty cycle 60%)
Safety Design
- Using strong materials for cases, the chassis mechanism does not allow small animmals into the power supply unit
Arc Drive Control
- Prevents electrode sticking to base metal during welding. (Standard Device)
Diversified Applications
- Useful for wide range of applications such as pressure tank, construction and on site work.
Features
Specification
MR400 is ideal DC Arc welding machine with stable arc and less spatter by adopting high quality IC-Thyristor technology
Arc drive control ( Standard Device )
- Arc drive control is standard function and it prevents a sticking of electrode to base metal during welding and enables smooth welding operation.
Perfect constant current characteristics
- Constant current characteristics features stable welding and its welding current always kept constant
Remote Box (Optional Accessory) for easy setting of welding conditions.
- Part No. C0035K00
Name
MR400 DC Arc Welding Machine OTC
Brand
Condition
New

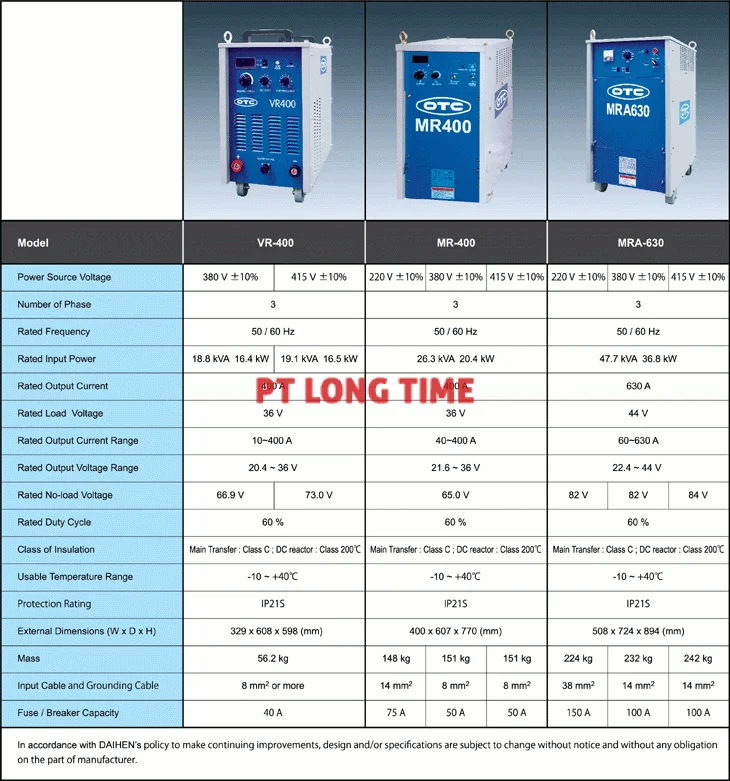

| Model | MR-400 | ||||||||
| Power Source Voltage | 220 V ± 10% | 380 V ± 10% | 415 V ± 10% | ||||||
| Number of Phase | 3 | ||||||||
| Rated Frequency | 50/60 Hz | ||||||||
| Rated Input Power | 26.3 kVA 20.4 kW | ||||||||
| Rated Output Current | 400 A | ||||||||
| Rated Load Voltage | 36 V | ||||||||
| Rated Output Current Range | 40~400 A | ||||||||
| Rated Output Voltage Range | 21.6 ~ 36 V | ||||||||
| Rated No-load Voltage | 65.0 V | ||||||||
| Rated Duty Cycle | 60% | ||||||||
| Class of Insulation | Main Transfer: Class C ; DC Reactor : Class 200 Degree C | ||||||||
| Usable Temperature Range | -10 ~±40 Degree C | ||||||||
| Protection Rating | IP21S | ||||||||
| External Dimensions (W x D x H) | 400 x 607 x 770 (mm) | ||||||||
| Mass | 148 kg | 151 kg | 151 kg | ||||||
| Input Cable and Grounding Cable | 14 mm² | 8 mm² | 8 mm² | ||||||
| Fuse/Breaker Capacity | 75 A | 50 A | 50 A | ||||||
