DP-270C CO2 / MAG Welding Machine OTC
Incredible Arc Stability at Very Low Current Ranges
Incredible Arc Stability at Very High Welding Speeds
Increadible Quality Weelding Achievable on Galvanized Steel
Optional Software Modes Available to Achieve High Quality Welding on Materials Such as Magnesium and Titanium
Instantaneous Arc Start By Capacitor Discharge Method
Four-Roll Encoder Wire Feeder As Standard Equipment
Specification
Name
DP-270C CO2 / MAG Welding Machine OTC
Brand
Condition
New

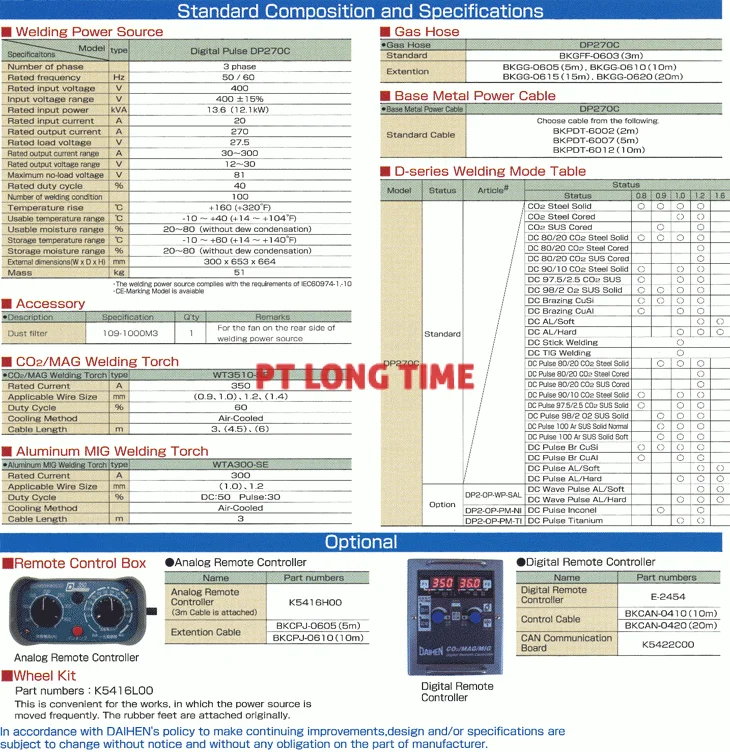

* Welding Power Source
| Specification Model | Type | Digital Pulse DP270C | ||||||
| Number of Phase | 3 phase | |||||||
| Rated Frequency | Hz | 50 / 60 | ||||||
| Rated Input voltage | V | 400 | ||||||
| Input voltage range | V | 400 ± 15 % | ||||||
| Rated input Power | Kva | 13.6 ( 12.1 kW ) | ||||||
| Rated input current | A | 20 | ||||||
| Rated output current | A | 270 | ||||||
| Rated load voltage | V | 275 | ||||||
| Rated output current range | A | 30~300 | ||||||
| Rated output voltage range | V | 12~30 | ||||||
| Maximum no-load voltage | V | 81 | ||||||
| Rated duty cycle | % | 40 | ||||||
| Number of welding condition | 100 | |||||||
| Temperature rise | C | +160(+320 Degree F) | ||||||
| Usable temperature range | C | -10~ +40(+14~ +104 Degree F) | ||||||
| Usable moisture range | % | 20~80 (without dew condenation) | ||||||
| Storage temperature range | C | -10~+60(+14 ~ + 140 Degree F) | ||||||
| Storage moisture range | % | 20~80 (without dew condenation) | ||||||
| External dimensions (W x D x H) | mm | 300 x 653 x 664 | ||||||
| Mass | kg | 51 | ||||||
* Accessory
| Description | Specification | Qty | Remarks | |||||
| Dust filter | 109-1000M3 | 1 | For the fan on the rear side of welding power source |
|||||
* CO²/MAG Welding Torch
| CO²/MAG Welding Torch | Type | WT3510-SE | |||||||
| Rated current | A | 350 | |||||||
| Applicable wire size | mm | (0.9, 1.0), 1.2, (1.4) | |||||||
| Duty cycle | % | 60 | |||||||
| Cooling method | Air-Cooled | ||||||||
| Cable length | m | 3, (4.5), (6) | |||||||
* Aluminum MIG Welding Torch
| Aluminum MIG Welding Torch | Type | WTA300-SE | |||||||
| Rated current | A | 300 | |||||||
| Applicable wire size | mm | (1.0), 1.2 | |||||||
| Duty cycle | % | DC:50 Pulse:30 | |||||||
| Cooling method | Air-Cooled | ||||||||
| Cable length | m | 3 | |||||||
* Gas Hose
| Gas Hose | DP270C | ||||||||
| Standard | BKGFF-0603(3m) | ||||||||
| Extention | BKGG-0605 (5m), BKGG-0610 (10m) BKGG-0615 (15m), BKGG-0620 (20m) |
||||||||
* Base Metal Power Cable
| Base Metal Power Cable | DP270C | ||||||||
| Standard Cable | Choose cable from the following BKPDT-6002 (2m) BKPDT-6007 (5m) BKPDT-6012 (10m) |
||||||||
