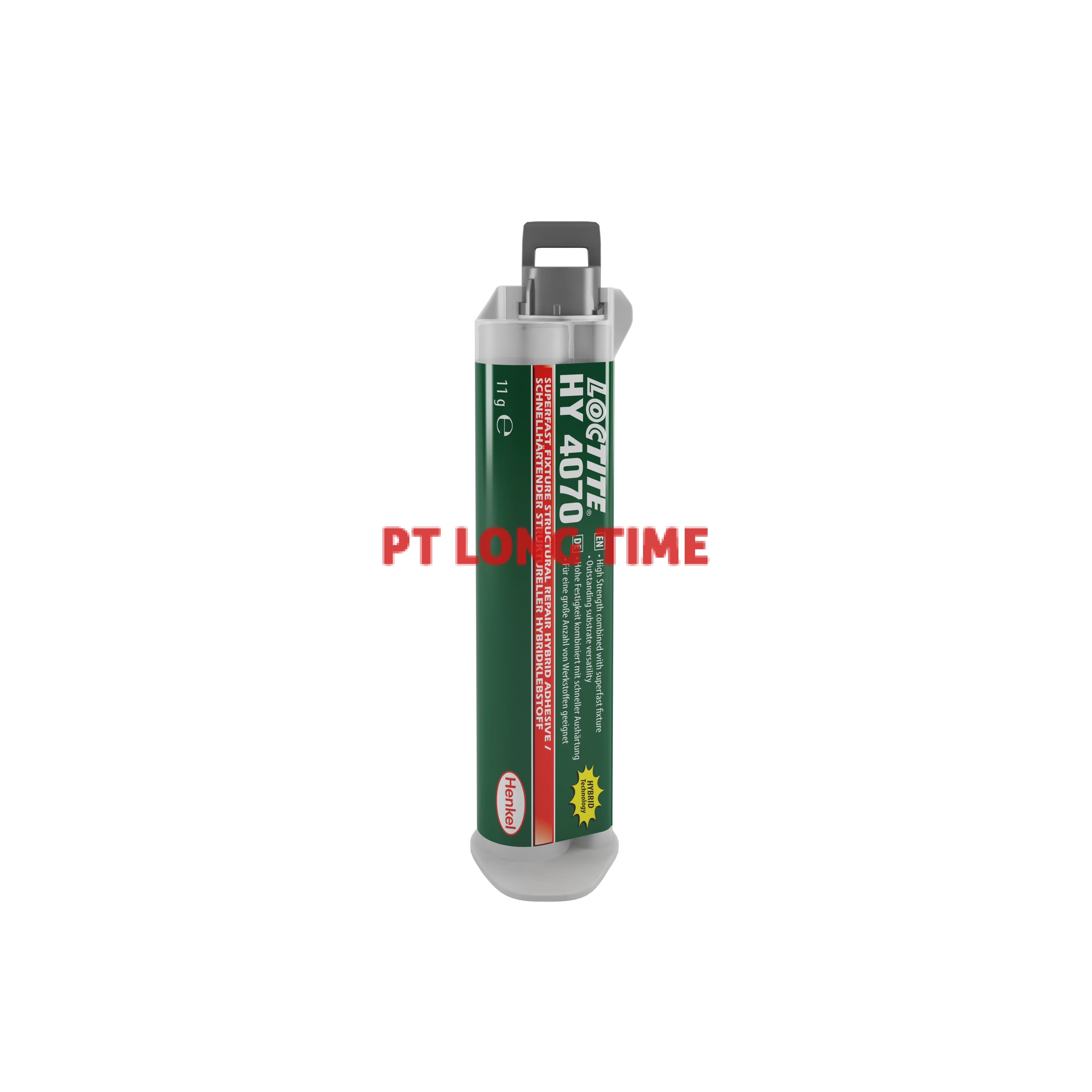

LOCTITE HY4070 Universal Bonder
OCTITE® HY 4070 Universal Bonder is designed for the assembly of parts with bond gaps up to 0.2 in (5 mm), and/or for applications where the complete cure of excess adhesive is a must. The gel consistency prevents adhesive flow even on vertical surfaces. HY 4070 is ideally suited for applications where temperature and moisture resistance is required. Best application results are achieved with use of the LOCTITE cyanoacrylate mixing nozzle (contained in the 11 gram kit).
- Fast fixturing
- Moisture resistant
- Temperature resistance from -40 to +100 Degree C
- Gap filling up to 0.2 in (5 mm)
- Gel consistency prevents adhesive flow, even on vertical surfaces.
- Excellent bonding characteristics to a variety of substrates including plastics, rubbers, and metals
Specification
Name
LOCTITE HY4070 Universal Bonder
SKU
HY4070
Brand
Condition
New
| Application method | Dispense System |
| Applications | Bonding Dissimilar Materials, Bonding Plastic, Bonding Rubber, Construction, Direct Bonding, Edge Bonding, Interior Repairs, Structural Bonding |
| Cure type | Room Temperature (Ambient) Cure, Two Component Mix |
| FEA (finite element analysis) | Finite Strain, Viscoelastic |
| Fixture time, Aluminum (etched) 0.5mm gap | <60 sec. |
| Gap fill | 5.0 mm |
| Mix ratio, by volume | 10:1 |
| Number of components | 2 Part |
| Physical form | Gel |
| Recommended for use with | Composite, Composite: Advanced Composites, Dry Surface, Elastomer: Highly Filled Elastomer, Epoxy, Fiberboard, Gel Coat, Laminate, Metal, Non-Gel Coat, Painted Surface, Phenolic, Plastic, Rubber, Thermoplastic, Thermoset, Urethane: Cast Urethane, Vinyl, Wood |
| Shear strength, Steel (grit blasted) | 25.0 N/mm (3625.0 psi) |
| Mixed | |
| Key characteristics, Mixed | Cure Speed: Ultra Fast Cure, Gap Filling, Moisture Resistant, Multipurpose |
| Operating temperature, Mixed | -40 - 100 Degree C (-40 - 212 Degre F) |
| Resin | |
| Casson viscosity, cone & plate, Resin @25 Degree C | 200 - 1300 mPa s (cP) |
| Color, Resin | Yellow |
| Hardener | |
| Color, Hardener | Clear |
| Viscosity, cone & plate, Hardener @25 Degree C Shear Rate 1.000 | 1 - 30 mPa s (cP) |
