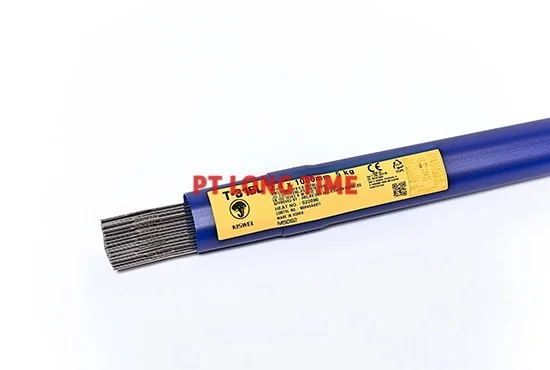

KISWEL Stainless steel (TIG) T-316L
Features
Specification
| Sizes (mm) | Standard | Welding Position (View+) | Shielding Gas | Polarity | |
| 1.2~4.0 |
AWS A5.9 EN 14343 A EN 14343-B JIS Z 3321 KS D 7026 |
ER316L W 19 12 3 L SS316L Y316L |
F, HF, H, VU, VD, OH | Ar | DC(-) |
| Typical chemical composition all-weld metal (%) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Remark |
| 0.02 | 0.4 | 1.73 | - | - | 11.17 | 18.15 | 2.22 | - |
| Typical chemical properties all-weld metal | |||||
| Y.S (MPa) | Y.S (MPa) | El. (%) | Hardness (HV) | IV (J) | PHWT |
| 430 | 560 | 40 | - |
90 (0 Degree C) 40 (-196 Degree C) |
- |
Name
KISWEL Stainless steel (TIG) T-316L
Brand
Condition
New
| Welding Position | Sizes (mm) | Ampere (A) | Volt (V) | ||
| Min. | Max | Min. | Max | ||
| All Position | 0.9mm | 50 | 80 | 10 | 12 |
| All Position | 1.2mm | 70 | 120 | 10 | 12 |
| All Position | 1.6mm | 90 | 170 | 11 | 16 |
| All Position | 2.4mm | 100 | 200 | 13 | 20 |
| All Position | 3.2mm | 120 | 250 | 13 | 22 |
