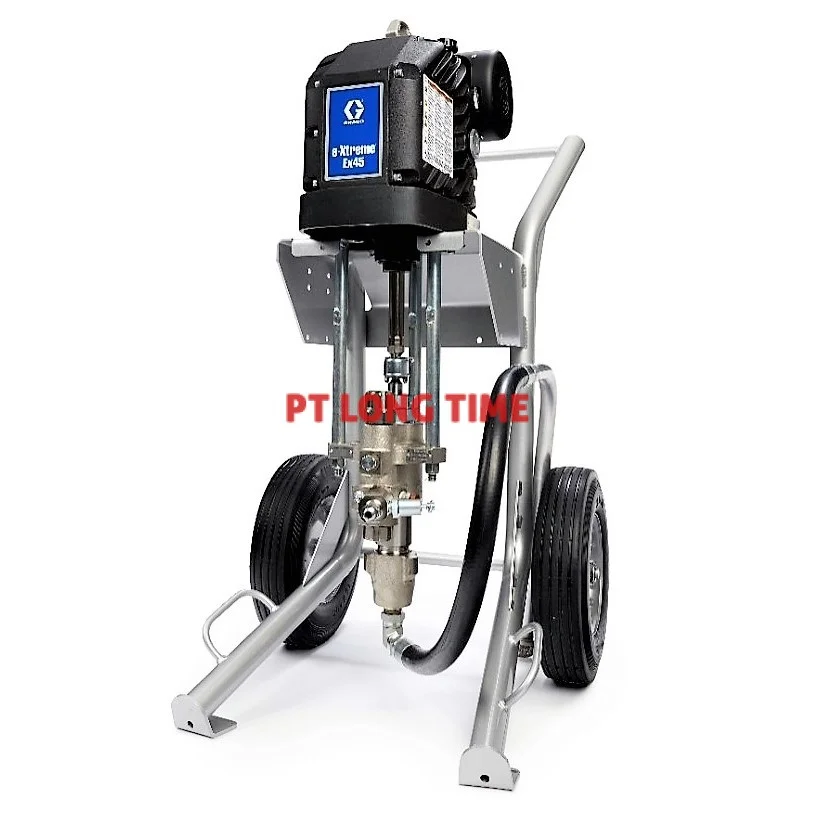

GRACO e-Xtreme Electric Airless Sprayer
Features
Specification
- Plug-in and spray electrical power - no compressors needed
- No air motor means no icing
- Quiet operation for when sound is an issue
- Hazardous location approved - the first of its kind
- Plenty of power for all sorts of applications
- Available 3-year extended warranty
Name
GRACO e-Xtreme Electric Airless Sprayer
Brand
Condition
New
| Ex45 e-Xtreme Sprayers | |
| Maximum fluid working pressure |
310 bar, 31.0 MPa |
| Stroke length |
120 mm |
| Maximum continuous cycle rate |
44 cycles per minute |
| Tip Size |
.021 in. |
| Weight |
135 kg |
| Wetted parts |
Carbon Steel, Alloy Steel, 304, 440 and 17–PH Grades of Stainless Steel, Zinc and Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE; Leather, Aluminum |
| Operating temperature range |
-5° to 50° C |
| Input voltage |
200–240 VAC, single phase, 50/60 Hz |
| Input power |
2.5 kVA |
| Minimum Recommended generator size |
5 kW |
| Oil capacity |
0.9–1.1 liters |
| Oil specification |
Graco part number 16W645 silicone-free ISO 220 synthetic EP gear oil |
| Inlet / Outlet Sizes | |
| Fluid inlet size |
1 in. npt(m) [also includes 1 in. nps(swivel) to 1 in. npt(m) adapter elbow] |
| Fluid outlet size |
1/2 npt(m) [also includes 1/2 npt(f) to 3/8 npt(m) adapter] |
| Hose Requirements | |
| Minimum pressure |
The minimum hose pressure rating should be equal to or greater than the maximum fluid working pressure of sprayer |
| Minimum length |
15 m |
| Minimum ID |
10mm |
| Maximum resistance per ISO 8028 |
30,000 ohms/m |
| Sound Emissions (per ISO 9614) for Normal Operation (Spraying @ 20 cpm) | |
| Sound Pressure LpA Average |
70.2 dBA |
| Sound Power LwA Total Power |
76.7 dBA |
| Sound Emissions (per ISO 9614) for Maximum Speed (Flushing @ 44 cpm) | |
| Sound Pressure LpA Average |
77.4 dBA |
| Sound Power LwA Total Power |
85.1 dBA |
