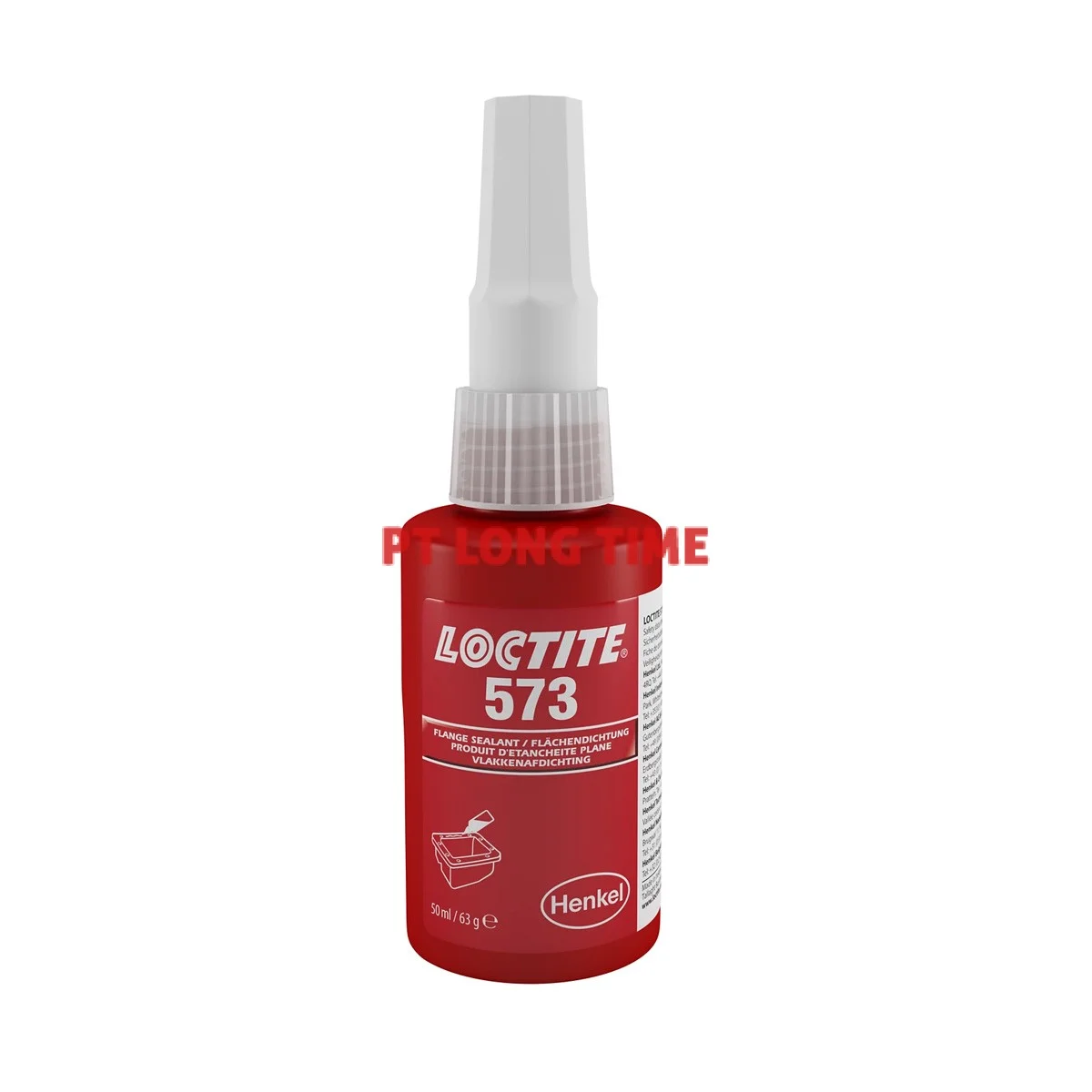

Flange Sealing Low Strength WEICONLOCK® AN 305-73 LOCTITE 573
Specification
Name
Flange Sealing Low Strength WEICONLOCK® AN 305-73 LOCTITE 573
SKU
AN 305-73
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Color | Light Green | |
| Fluorescent | Yes | |
| Viscosity | 17,000 - 50,000 ht mPa·s | |
| Gap Bridging | Up to max. 0.3 mm | |
| Breakaway Torque | 6 - 10 Nm | |
| Prevail Torque | 2 - 5 Nm | |
| Shear Strength (Nmm²) | 4 - 6 N/mm² (DIN 54452) | |
| Handling Strength | 20 - 40 min. | |
| Final Strength | (100% Strength) | 12 h |
| Temperature Resistance | -60°C to 150 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1500 bar |
| M_8x12 | max. | 700 bar |
| M_10x16 | max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Shear Strength Lab | 1.3 N/mm² |
| Gap Filling | 0.1 mm |
| Substrate | Metal: Aluminum, Metal: Steel |
| Fixture Time | 9.0 - 12.0 hr. |
| Color | Green |
