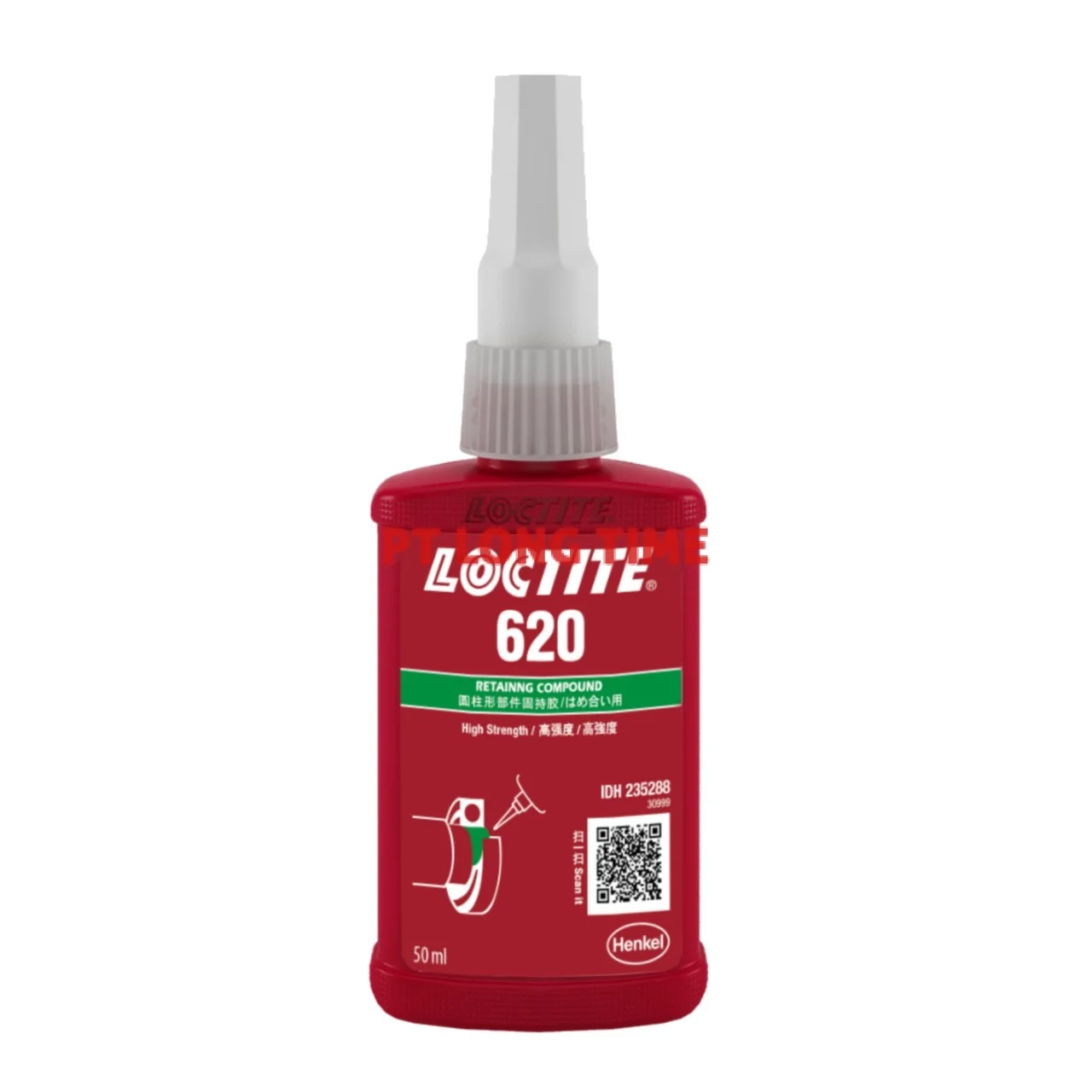

Adhesive Material For High Temperatures WEICONLOCK AN 306-20 LOCTITE 620
Specification
Name
Adhesive Material For High Temperatures WEICONLOCK AN 306-20 LOCTITE 620
SKU
AN 306-20
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Green | |
| Fluorescent | yes | |
| For thread connections up to | M 56 R 2" | |
| Viscosity | 3,000 - 6,000 nt mPa·s | |
| Gap bridging up to max. | 0.2 mm | |
| Breakaway torque | 28 - 36 Nm | |
| Prevail torque | 40 - 55 Nm | |
| Shear strength Nmm² (DIN 54452) | 15 - 25 N/mm² | |
| Handling strength | 20 - 40 Min. | |
| Final strength | (100 % strength) | 24 Hrs. |
| Temperature resistance | -60 to +200 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1300 bar |
| M_8x12 | max. | 1000 bar |
| M_10x16 | max. | 500 bar |
| LOCTITE SPESIFICATION | |
| Application | Retaining, For High Temperature Applications, For Slip Fitted Parts |
| Physical Form | Liquid |
| Shear Strength, Steel | 26.0 N/mm² (3800.0 psi ) |
| Key Characteristics | Adhesion: Medium to Strong Adhesion, Dry Speed: Slow Dry, Gap Filling, Temperature: High Temperature, Viscosity: High Viscosity |
| Application Method | Manual, Dosing system |
| Gap Filling | 0.15 - 0.25mm |
| Institutional Approval/Specifications | DVGW (EN 751-1): NG-5146AR0622 |
| Substrate | Metal: Steel |
| Operating Temperature | -55.0 - 230.0 °C (-65.0 - 450.0 °F ) |
| Technology | Acrylic |
| Drying Type | Anaerobic Drying |
| Viscosity | 8000.0 mPa.s (cP) |
| Fixture Time | 60.0 min. |
| Color | Green |
