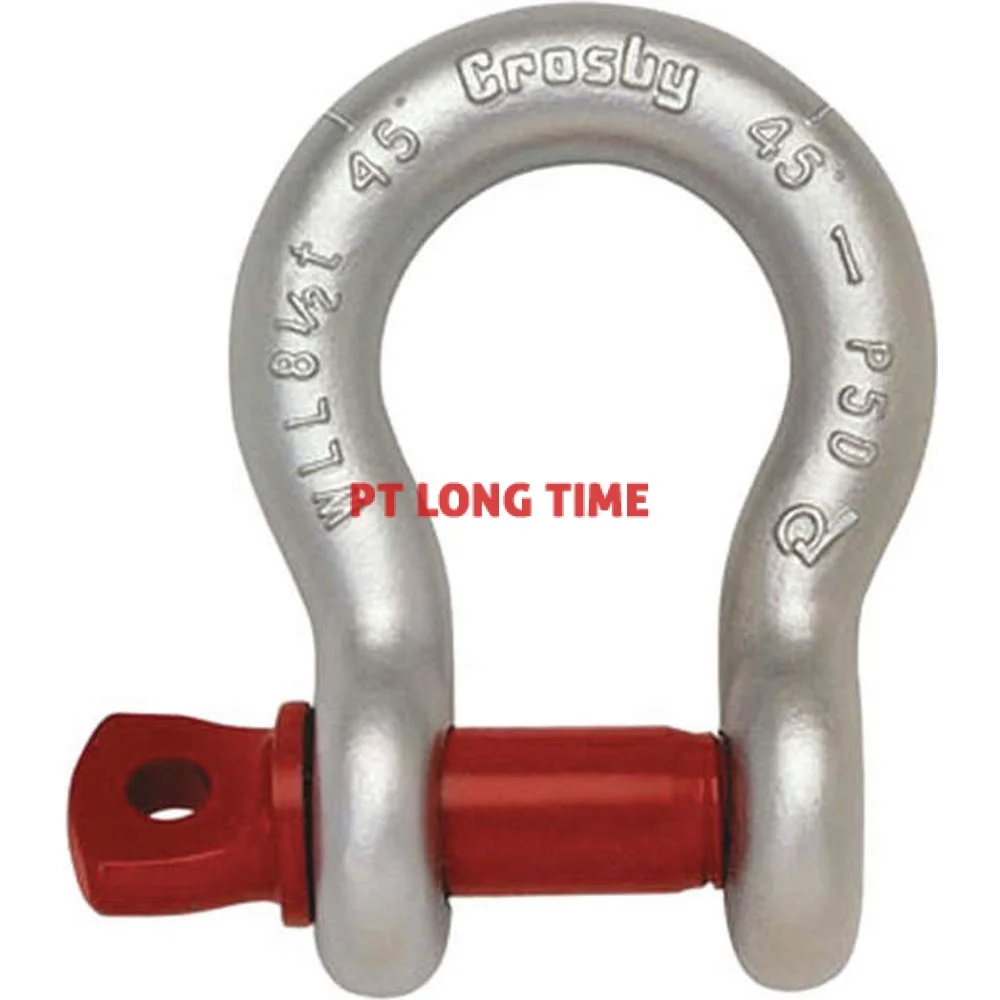

CROSBY 1018570 1-1/4" Screw Pin Bow Shackle 12Ton
Features
Specification
- Working load limit and grade 6 permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 400 deg F
- 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
- The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
- The tests are conducted by Crosby® and 3.1 test certified
- All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
- Look for the Red Pin® the mark of genuine Crosby® quality
Name
CROSBY 1018570 1-1/4" Screw Pin Bow Shackle 12Ton
SKU
1018570
Brand
Condition
New
| Part Number | 1018570 |
| Length | 8.25 in |
| Width | 6.25 in |
| Working Load Limit | 12 Ton |
| Series | G-209X-1 |
| Shackle Size | 1-1/4 in |
| Pin Diameter | 1-3/8 in |
| Eye Outer Size | 3 in |
| Opening Size | 2.03 in |
| Inner Width | 3-1/4 in |
| Inner Length | 4.69 in |
| Body Material | Carbon Steel |
| Pin Material | Alloy |
| Pin Type | Screw |
| Finish | Hot Dipped Galvanized |
