VITAL CHAIN BLOK VH5 Series

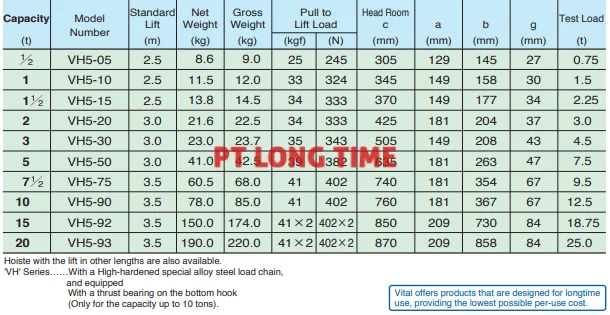

Capacity (t) | Model Number | Standard Lift (m) | Net Weight (kg) | Gross Weight (kg) | Pull to Lift Load | Head Room c (mm) | a (mm) | b (mm) | g (mm) | Test Load (t) | |
(kgf) | (N) | ||||||||||
1/2 | VH5-05 | 2.5 | 8.6 | 9.0 | 25 | 245 | 305 | 129 | 145 | 27 | 0.75 |
1 | VH5-10 | 2.5 | 11.5 | 12.0 | 33 | 324 | 345 | 149 | 158 | 30 | 1.5 |
1 1/2 | VH5-15 | 2.5 | 13.8 | 14.5 | 34 | 333 | 370 | 149 | 177 | 34 | 2.25 |
2 | VH5-20 | 3.0 | 21.6 | 22.5 | 34 | 333 | 425 | 181 | 204 | 37 | 3.0 |
3 | VH5-30 | 3.0 | 23.0 | 23.7 | 35 | 343 | 505 | 149 | 208 | 43 | 4.5 |
5 | VH5-50 | 3.0 | 41.0 | 42.5 | 39 | 382 | 635 | 181 | 263 | 47 | 7.5 |
7 1/2 | VH5-75 | 3.5 | 60.5 | 68.0 | 41 | 402 | 740 | 181 | 354 | 67 | 9.5 |
10 | VH5-90 | 3.5 | 78.0 | 85.0 | 41 | 402 | 760 | 181 | 367 | 67 | 12.5 |
15 | VH5-92 | 3.5 | 150.0 | 174.0 | 41×2 | 402×2 | 850 | 209 | 730 | 84 | 18.75 |
20 | VH5-93 | 3.5 | 190.0 | 220.0 | 41×2 | 402×2 | 870 | 209 | 858 | 84 | 25.0 |
Specification
