Multi mode for high performance |
High Welding quality and high efficiency with DC TIG Pulsed DC TIG and DC Stick |
|
High quality with DC TIG welding |
Multi Function such as low pulse control (0.5-15Hz), initial current, up slope, down slope and crater fill control |
|
High efficiency with DC Stick welding |
High efficiency with low spatter is achieved with from 2.6 to 5mm stick electrode |
|
Wide application |
Powerful performances for pressure vessel, pipes, plant, maintenance, and etc… |
High welding quality and high efficiency for mild steel, stainless steel, nickel alloy with DC TIG, Pulsed DC TIG and DC Stick as standard modes.
High performance function for TIG and Pulsed TIG
TIG Pulse function (0.5-15Hz)
- Ultimate URANAMI (full penetration welding) and bead appearance are achieved with pulsed TIG function. Also, High performance for different material,, different thinkness and gap.
High quality and High efficiency for multi-layer welding
- First layer with Pulsed TIG for URANAMI, DC TIG for high welding speed from second layer.

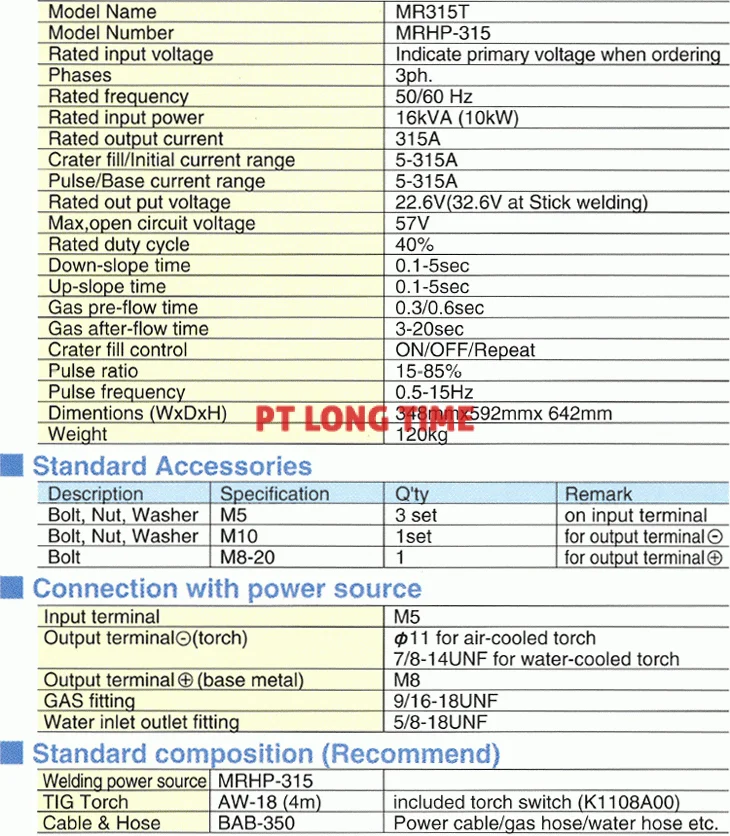

| Model Name | MR315T | ||||||
| Model Number | MRHP-315 | ||||||
| Rated input voltage | Indicate primary voltage when ordering | ||||||
| Phases | 3ph. | ||||||
| Rated frequency | 50/60 Hz | ||||||
| Rated input power | 16kVA (10kW) | ||||||
| Rated output current | 315A | ||||||
| Crater fill / initial current range | 5-315A | ||||||
| Pulse / Base current range | 5-315A | ||||||
| Rated output voltage | 22.6V(32.6V at Stick welding) | ||||||
| Max, open circuit voltage | 57 V | ||||||
| Rated duty cycle | 40% | ||||||
| Down-slope time | 0.1-5sec | ||||||
| Up-slope time | 0.1-5sec | ||||||
| Gas pre-flow time | 0.3/0.6sec | ||||||
| Gas after-flow time | 3-20sec | ||||||
| Crater fill control | ON/OFF/Repeat | ||||||
| Pulse ratio | 15-85% | ||||||
| Pulse frequency | 0.5-15 Hz | ||||||
| Dimentions (WxDxH) | 348mm x 592mm x 642mm | ||||||
| Weight | 120kg |
* Standard Accessories
| Description | Specification | Qty | Remark | ||||
| Bolt, Nut, Washer | M5 | 3 set | on input terminal | ||||
| Bolt, Nut, Washer | M10 | 1 set | for output terminal - | ||||
| Bolt | M8-M20 | 1 | for output terminal + |
* Connection with Power Source
| Input terminal | M5 | ||||||
| Output terminal - (torch) | Ø11 air-cooled torch 7/8-14UNF for water-cooled torch |
||||||
| Output terminal + (base metal) | M8 | ||||||
| GAS fitting | 9/16-18 UNF | ||||||
| Water inlet outlet fitting | 5/8-18 UNF |
* Standard Composition
| welding Power Source | MRHP-315 | ||||||
| TIG Torch | AW-18 (4m) | included torch switch (K1108A00) | |||||
| Cable & Hose | BAB-350 | Power cable/gas hose/water hose etc. | |||||
