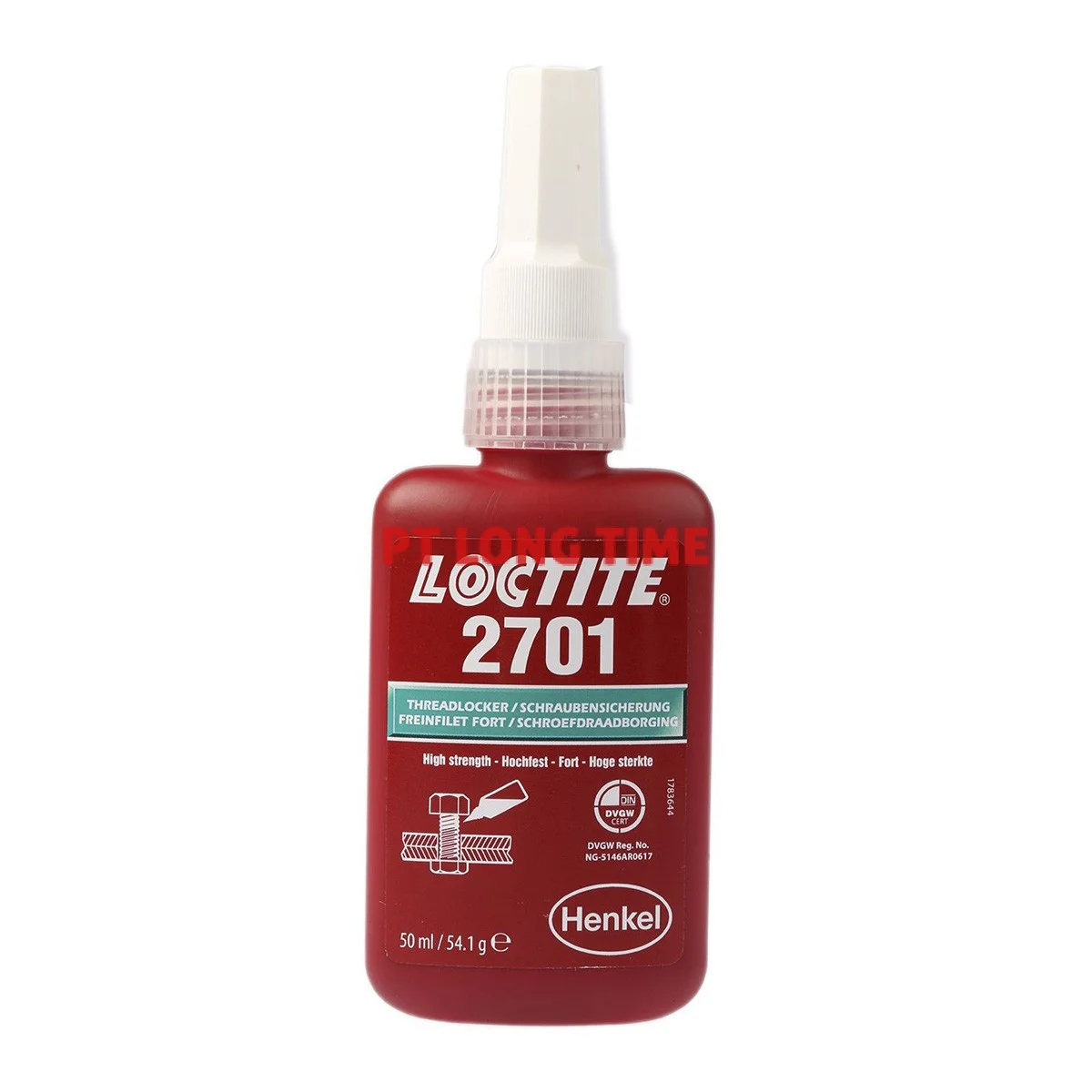

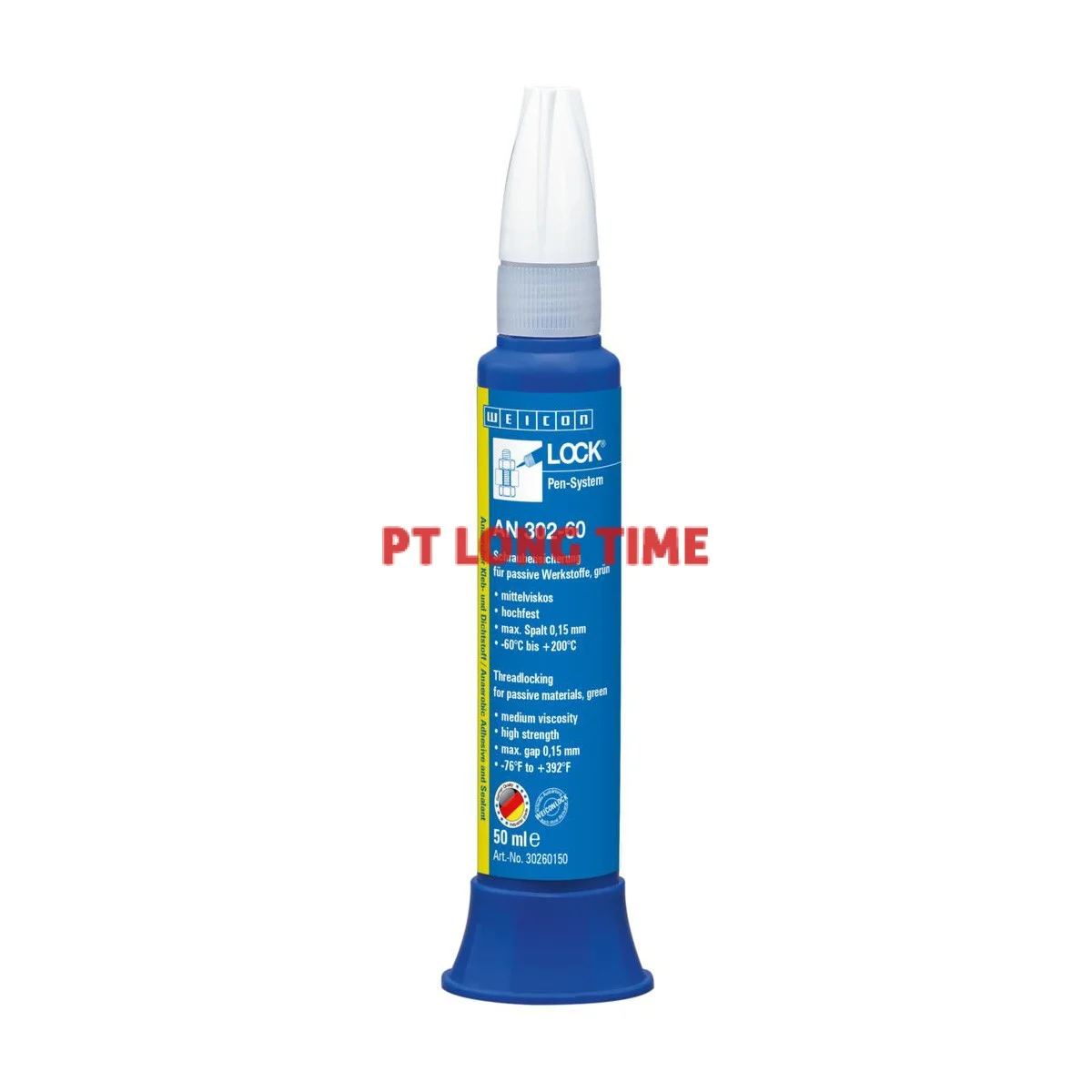

Threadlocking WEICONLOCK® AN 302-60 LOCTITE 2701
Specification
Name
Threadlocking WEICONLOCK® AN 302-60 LOCTITE 2701
SKU
AN 302-60
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Green | |
| Fluorescent | Yes | |
| For Thread Connections up to | M 20 R ¾" | |
| Viscosity | 700 - 1,000 nt mPa·s | |
| Gap Bridging | Up to max. 0.15 mm | |
| Breakaway Torque | 15 - 20 Nm | |
| Prevail Torque | 30 - 35 Nm | |
| Shear Strength (Nmm²) | 25 - 35 N/mm² (DIN 54452) | |
| Handling Strength | 5 - 10 min. | |
| Final Strength | (100% Strength) | 6-12 h |
| Temperature Resistance | -60°C to +200 degree C | |
| Compressive Strength (Free Cutting Steel / Grub Screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1500 bar |
| M_6x10 | max. | 1000 bar |
| M_8x12 | max. | 800 bar |
| M_10x16 | max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Methacrylate |
| Color | Green |
| Fixture time | 4.0 - 25.0 min. |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 2, speed 20 rpm | 500.0 - 900.0 mPa·s (cP) |
