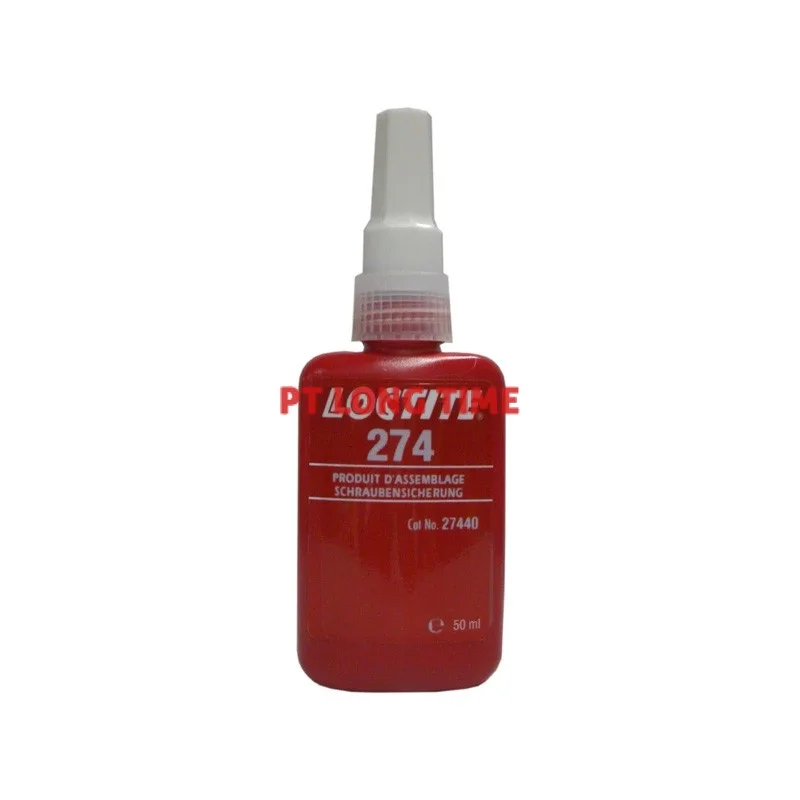

Threadlocker Medium Strength WEICONLOCK AN 302-41 LOCTITE 274
Specification
Name
Threadlocker Medium Strength WEICONLOCK AN 302-41 LOCTITE 274
SKU
AN 302-41
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Blue | |
| Fluorescent | Yes | |
| For Thread Connections | Up to M 12 | |
| Viscosity | 125 ht mPa·s | |
| Gap Bridging | Up to max. 0.1 mm | |
| Breakaway Torque | 10 - 15 Nm | |
| Prevail Torque | 12 - 16 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 8 - 12 N/mm² |
| Handling Strength | 10 - 20 min. | |
| Final Strength | (100% strength) | 3 h |
| Temperature Resistance | -60°C to +150°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 700 bar |
| M_8x12 | Max. | 500 bar |
| M_10x16 | Max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Chemical basis / base | Dimethacrylate Ester |
| Color | Blue |
| Fixture time | 30.0 min. |
| Viscosity, Brookfield - RVT, @ 25.0°C Spindle 1, speed 50 rpm | 80.0 - 150.0 mPa·s (cP) |
