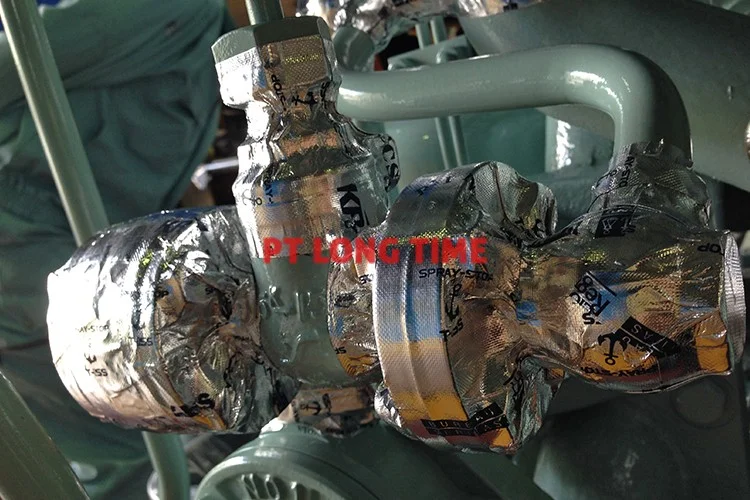

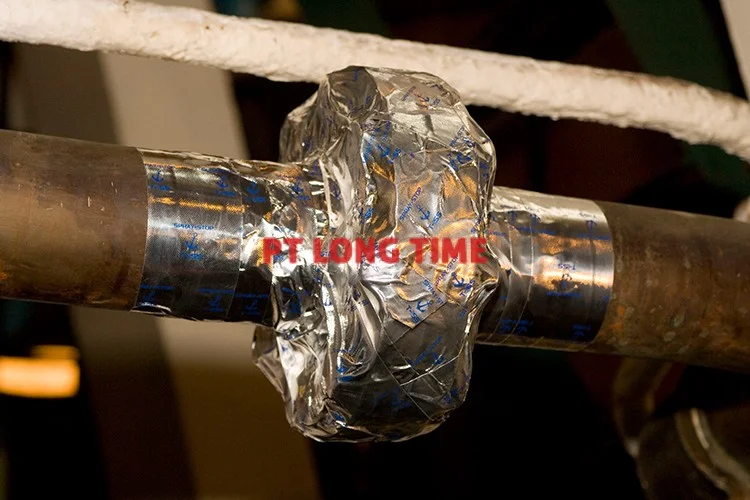

Spray Stop Standard and Spray Stop 50+ anti-splash tape is used for applications in the marine & offshore industry. This high-tech laminated multilayer aluminium tape, has been designed by safety specialists in order to prevent spray outs of hazardous liquids (oil / fuel) from tubing systems. These liquids can cause extremely dangerous situations like fires, explosions or other dangerous situations. According to the SOLAS amendment chapter 2-2 regulation, ships are to apply appropriate protection system to prevent leakage and splashing of flammable oil from FO, LO hydraulic and other piping systems.
This product complies with the IMO A653 (6) regulations. Spray Stop standard can be used up to 15 bar pressure, Spray Stop 50+ up to 50 bar pressure.
|
ART.NO: |
ART.NO. 50+: |
SIZE: |
WEIGHT: |
QTY/BOX: |
IMPA: |
| TS001 | TS501 | 35 mm x 10 m | 0,10 kg | 28 rolls | 87.18.01 |
| TS002 | TS502 | 50 mm x 10 m | 0,20 kg | 20 rolls | 87.18.02 |
| TS008 | TS508 | 75 mm x 10 m | 0,25 kg | 13 rolls | 87.18.08 |
| TS003 | TS503 | 100 mm x 10 m | 0,30 kg | 10 rolls | 87.18.04 |
| TS004 | TS504 | 140 mm x 10 m | 0,40 kg | 7 rolls | 87.18.03 |
| TS005 | TS505 | 250 mm x 10 m | 0,70 kg | 4 rolls | 87.18.07 |
| TS006 | TS506 | 500 mm x 10 m | 1,80 kg | 2 rolls | 87.18.05 |
| TS007 | TS507 | 1000 mm x 10 m | 4,00 kg | 1 roll | 87.18.06 |
This high-tack protection tape was designed in order to prevent spray from hot liquids, which can come in contact with materials inside process-plants causing damages to equipment and operators.
* Max pressure : 15 bar
* Max temperature: +160 Degree C continuously, +200 DegreeC shortly.
* Adhesive material tolerance: -70 Degree C up to +200 Degree C.
* Adhension : 1000 g above ; 25mm g/f.
* Shelflife : Minimum 3 years properly stored.
