Pipe and Thread Sealing WEICONLOCK AN 302-25 LOCTITE 225
Specification
Name
Pipe and Thread Sealing WEICONLOCK AN 302-25 LOCTITE 225
SKU
AN 302-25
Brand
Condition
New
| WEICON SPESFICATION | ||
| Colour | Brown | |
| Fluorescent | No | |
| For Thread Connections | Up to M 80 R 3" | |
| Viscosity | 6,000 - 30,000 mt mPa·s | |
| Gap Bridging | Up to max. 0.3 mm | |
| Breakaway Torque | 5 - 8 Nm | |
| Prevail Torque | 2 - 4 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 3 - 5 N/mm² |
| Handling Strength | 15 - 30 min. | |
| Final Strength | (100% strength) | 3-6 h |
| Temperature Resistance | -60°C to +150°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. | 1500 bar |
| M_4x6 | Max. | 1500 bar |
| M_5x8 | Max. | 1500 bar |
| M_6x10 | Max. | 1000 bar |
| M_8x12 | Max. | 800 bar |
| M_10x16 | Max. | 400 bar |

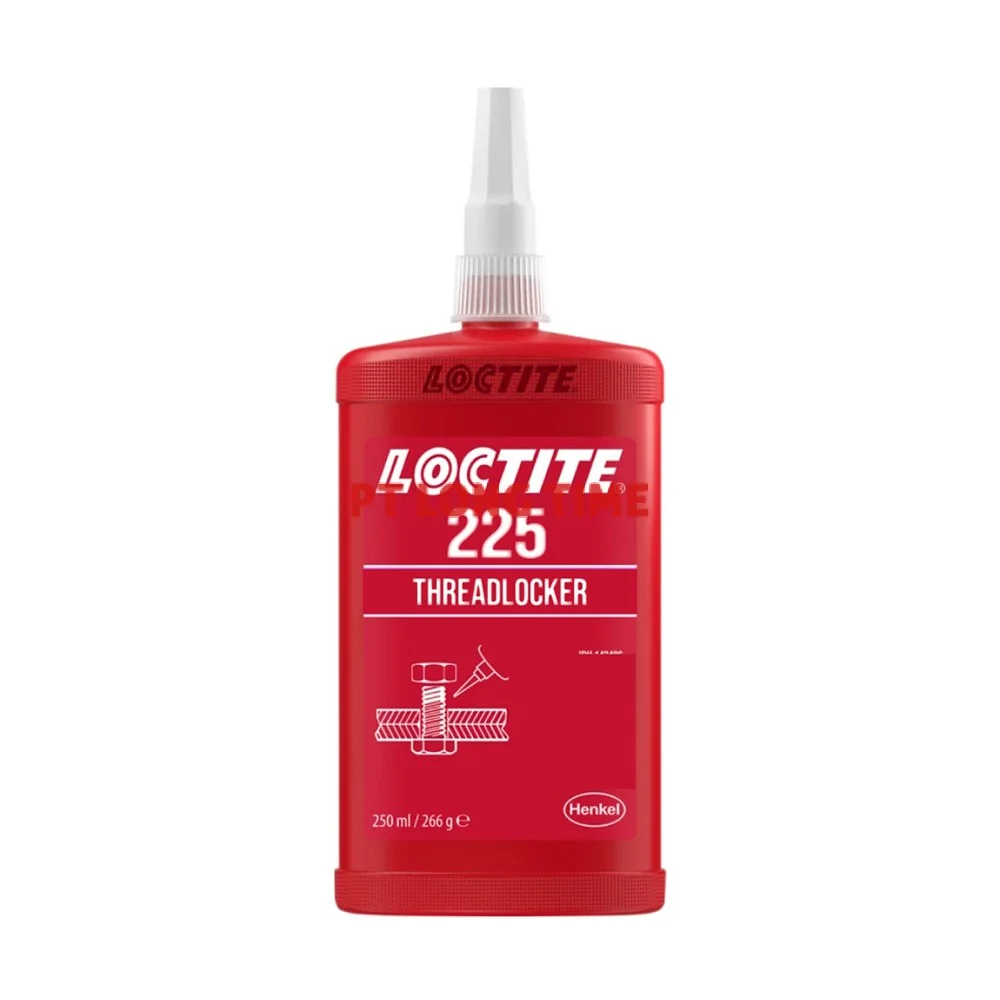

| LOCTITE SPESIFICATION | |
| Basic Chemical Materials | Dimethacrylate Ester |
| Physical Form | Liquid |
| Viscosity, Brookfield - RVT, @ 25.0°C Spindle 5, speed 2.5 rpm | 17500.0 - 52500.0 mPa.s (cP) |
| Viscosity, Brookfield - RVT, @ 25.0°C Spindle 5, speed 20 rpm | 5900.0 - 10300.0 mPa.s (cP) |
| Fixture Time | 50.0 min. |
| Color | Chocolate |
