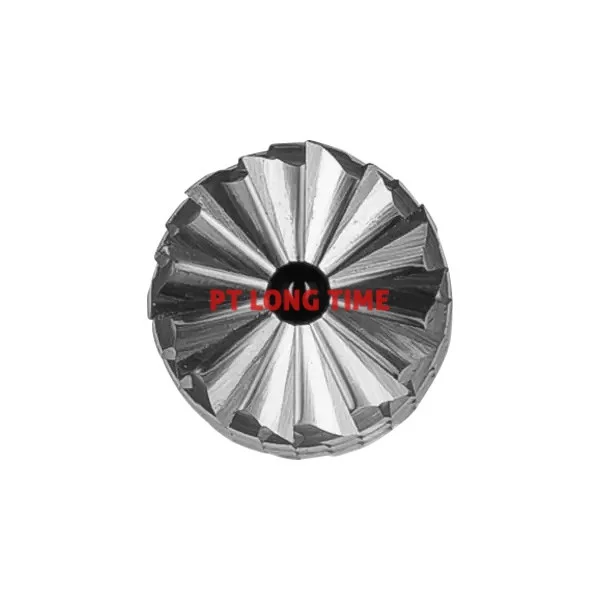

PFERD TC Burr High-performance Allround Cylindrical ZYAS End Dia. 10 x 20MM Universal Coarse EAN 4007220092903

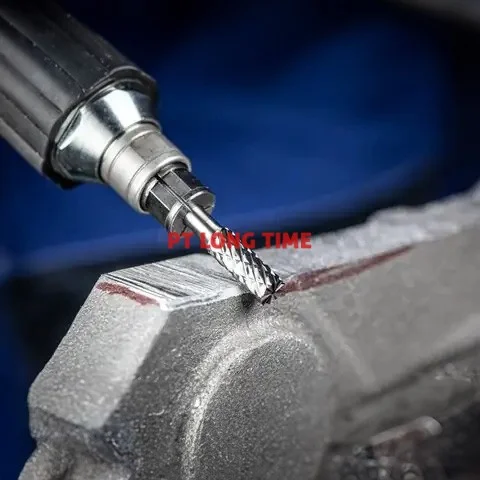

With the innovative ALLROUND cut, PFERD has developed unique burrs for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The ALLROUND cut offers all the benefits of the tried-and-tested 3 PLUS cut, but its stock removal rate is up to 30 % higher for steel. It enables comfortable working with reduced vibration and less noise. The ALLROUND cut also helps users save considerable time when working, thus making it an economically efficient option.
Cylindrical burr according to DIN 8032 with circumferential and end cut.
Features
Specification
| Materials that can be worked | Applications |
|
|
| Drive types | |
|
Name
PFERD TC Burr High-performance Allround Cylindrical ZYAS End Dia. 10 x 20MM Universal Coarse EAN 4007220092903
SKU
4007220092903
Brand
Condition
New
| Cut | ALLROUND |
| Diameter (External) | 10 mm |
| Diameter (Shank) | 6 mm |
| Length (Cut) | 20 mm |
| Length (Total) | 60 mm |
| RPM Range (Grey Cast Iron, White Cast Iron) | 14,000 - 29,000 RPM |
| RPM Range (Hard Non-Ferrous Metals) | 14,000 - 19,000 RPM |
| RPM Range (Hardened, Heat-Treated Steels >1,200 N/mm²) | 8,000 - 14,000 RPM |
| RPM Range (Rust and Acid-Resistant Steels) | 14,000 - 19,000 RPM |
| RPM Range (Soft Non-Ferrous Metals) | 14,000 - 24,000 RPM |
| RPM Range (Steels up to 1,200 N/mm²) | 14,000 - 24,000 RPM |
