Add Enquiry Added

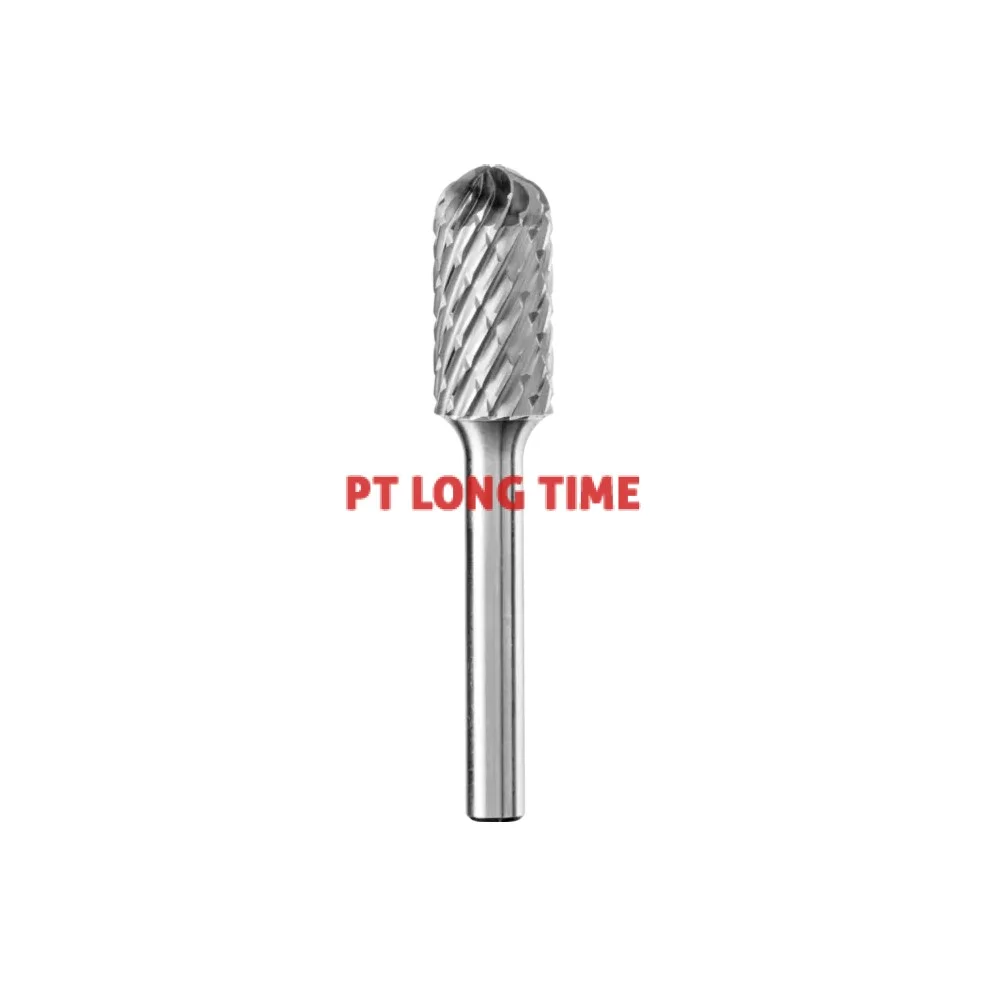

PFERD TC Burr Cylindrical ZYA Dia. 02 x 10MM Shank Dia. 3MM EAN 4007220233771
Materials that can be worked Applications
  • Annealed cast iron
  • Black annealed cast iron (GTS, GJMB)
  • Case-hardened steels
  • Cast iron
  • Cast steel
  • Cobalt-based alloys
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hard aluminium alloys
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • High-temperature-resistant materials
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Steel
  • Steel, cast steel
  • Steels over 700 N/mm² (> 220 HB)
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Steels up to 700 N/mm² (< 220 HB)
  • Tool steels
  • White annealed cast iron (GTW, GJMW)
  • Cutting out holes
  • Deburring
  • Leveling
  • Milling
  • Milling out
  • Surface work
  • Work on weld seams
Drive types
  • Drive spindle
  • Flexible shaft drive
  • Robot
  • Stationary machines
  • Straight grinder
  • Tool machine
Specification
Name
PFERD TC Burr Cylindrical ZYA Dia. 02 x 10MM Shank Dia. 3MM EAN 4007220233771
SKU
4007220233771
Brand
PFERD
Condition
New
Cut 3 PLUS
Dia. external 2 mm
Dia. shank 3 mm
Length, cut 10 mm
Length, total 1,575
Length, total 40 mm
RPM from, grey cast iron, white cast iron 72000 RPM
RPM from, hardened, heat-treated steels over 1,200 N/mm² 40000 RPM
RPM from, high-temperature-resistant materials 40000 RPM
RPM from, rust and acid-resistant steels 40000 RPM
RPM from, steels up to 1,200 N/mm² 72000 RPM
RPM to, grey cast iron, white cast iron 95000 RPM
RPM to, hardened, heat-treated steels over 1,200 N/mm² 56000 RPM
RPM to, high-temperature-resistant materials 72000 RPM
RPM to, rust and acid-resistant steels 56000 RPM
RPM to, steels up to 1,200 N/mm² 95000 RPM
