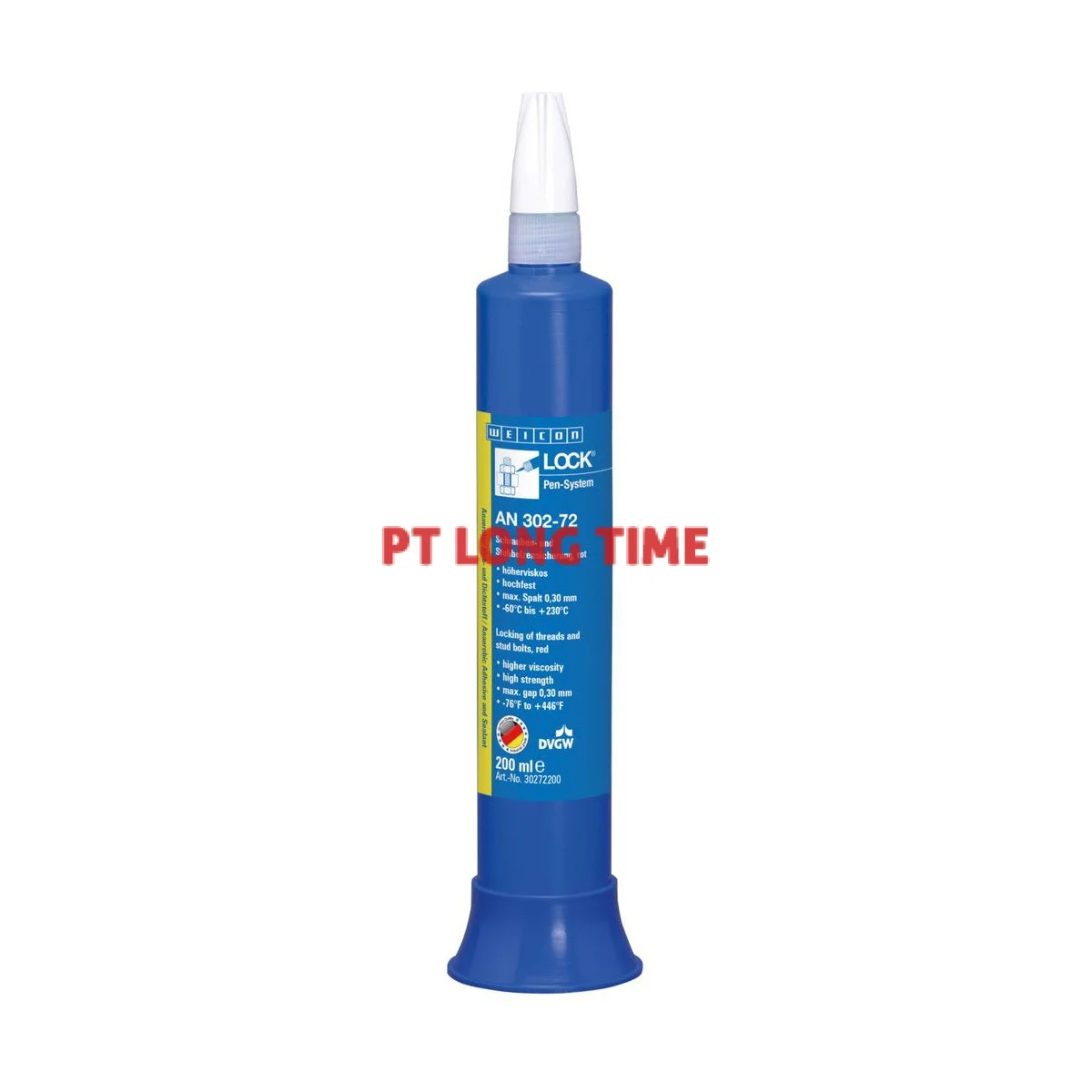

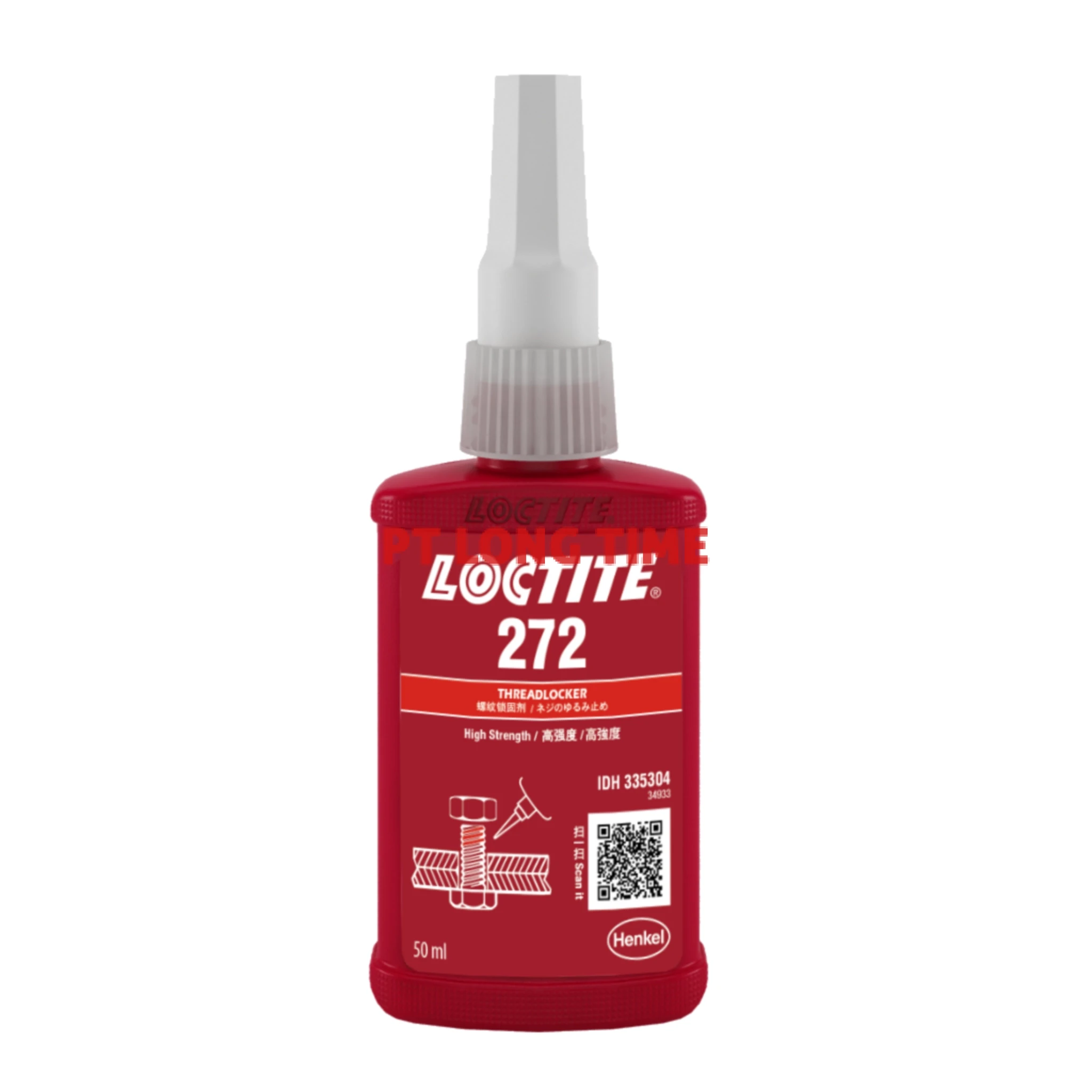

Locking of Threads and Stud Bolts WEICONLOCK AN 302-72 LOCTITE 272
Specification
Name
Locking of Threads and Stud Bolts WEICONLOCK AN 302-72 LOCTITE 272
SKU
AN 302-72
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | red | |
| Fluorescent | no | |
| For thread connections up to | M 56 R 2" | |
| Viscosity | 6.000 - 15.000 mPas | |
| Gap bridging up to max. | 0,3 mm | |
| Breakaway torque | 20 - 30 Nm | |
| Prevail torque | 40 - 75 Nm | |
| Shear strength Nmm² (DIN 54452) | 10 - 15 N/mm² | |
| Handling strength | 20 - 40 min. | |
| Final strength | (100 % strength) | 5-10 h |
| Temperature resistance | -60 to +230 degree C | |
| Compressive strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | max. | 1500 bar |
| M_4x6 | max. | 1500 bar |
| M_5x8 | max. | 1000 bar |
| M_6x10 | max. | 700 bar |
| M_8x12 | max. | 500 bar |
| M_10x16 | max. | 300 bar |
| LOCTITE SPESIFICATION | |
| Basic Chemical Materials | Methacrylate |
| Key Characteristics | Thixotropic |
| Substrate | Metal: Steel |
| Viscosity, Brookfield - RVT, @ 25.0 degree C Spindle 4, speed 20 rpm | 4000.0 - 15000.0 mPa.s (cP) |
| Fixture Time | 40.0 min. |
| Color | Red |
