Sell KYOCERA 46856 Carbide Endmill 8MM x 4FL 0,50R TX

Add Enquiry Added

KYOCERA 46856 Carbide Endmill 8MM x 4FL 0,50R TX

Z-Carb-AP 8.00mm Dia, 19.00mm LOC, 8.00mm Shank Dia, 0.50mm Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPMC, Z-Carb-AP Corner Radius End Mill

Features
Specification
Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
Unequal helix design changes the cutting angle to improve harmonics
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
Name
KYOCERA 46856 Carbide Endmill 8MM x 4FL 0,50R TX
SKU
46856
Condition
New

			Series Description
			Z-Carb-AP

			High Performance
			Yes

			End Configuration
			Corner Radius

			Unit
			mm

			Number of Flutes
			4

			Primary Workpiece Materials
			(P) Steel | (M) Stainless Steel | (K) Cast Iron | (S) High Temp Alloy

			Secondary Workpiece Materials
			(H) Hardened Materials

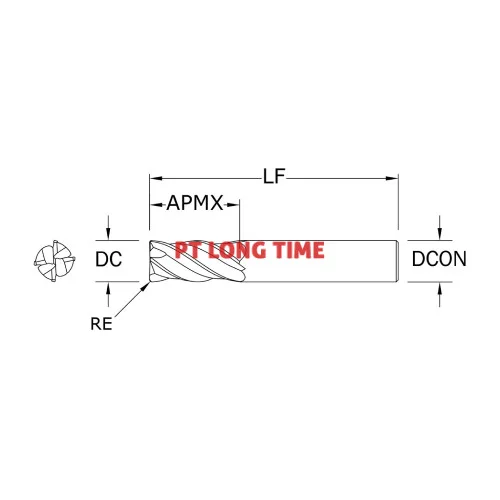

			Cutting Diameter (DC)
			8.00 mm (0.3150")

			Shank Diameter (DCON)
			8.00 mm (0.3150")

			Length of Cut (APMX)
			19.00 mm (0.7480")

			Overall Length (LF)
			63.00 mm (2.4803")

			Shank Length (LS)
			43.99 mm (1.7320")

			Corner Radius (RE)
			0.50 mm (0.0197")

			Tolerances
			DC: +0.000/-0.040 mm (+0.0000/-0.0016")

			DCON: h6 (ISO)

			RE: +0.000/-0.050 mm (+0.0000/-0.0020")

			Shank Type
			Straight

			Coolant Option
			External Coolant

			Geometry
			Flute Spacing Unequal / RHC (Right Hand Cut)

			Rake Angle
			Variable

			Helix Angle
			35°–38° (Variable Right Spiral)

			Variable Helix
			Yes

			Center Cutting
			Yes

			Chip Breaker
			No

			Flute Type
			Spiral

			Coating
			TX (Ti-NAMITE-X)

			Weldon Flat
			No

			Tool Length
			Regular

			Shipping Weight
			0.0940

Series Description	Z-Carb-AP
High Performance	Yes
End Configuration	Corner Radius
Unit	mm
Number of Flutes	4
Primary Workpiece Materials	(P) Steel \| (M) Stainless Steel \| (K) Cast Iron \| (S) High Temp Alloy
Secondary Workpiece Materials	(H) Hardened Materials
Cutting Diameter (DC)	8.00 mm (0.3150")
Shank Diameter (DCON)	8.00 mm (0.3150")
Length of Cut (APMX)	19.00 mm (0.7480")
Overall Length (LF)	63.00 mm (2.4803")
Shank Length (LS)	43.99 mm (1.7320")
Corner Radius (RE)	0.50 mm (0.0197")
Tolerances	DC: +0.000/-0.040 mm (+0.0000/-0.0016") DCON: h6 (ISO) RE: +0.000/-0.050 mm (+0.0000/-0.0020")
Shank Type	Straight
Coolant Option	External Coolant
Geometry	Flute Spacing Unequal / RHC (Right Hand Cut)
Rake Angle	Variable
Helix Angle	35°–38° (Variable Right Spiral)
Variable Helix	Yes
Center Cutting	Yes
Chip Breaker	No
Flute Type	Spiral
Coating	TX (Ti-NAMITE-X)
Weldon Flat	No
Tool Length	Regular
Shipping Weight	0.0940
