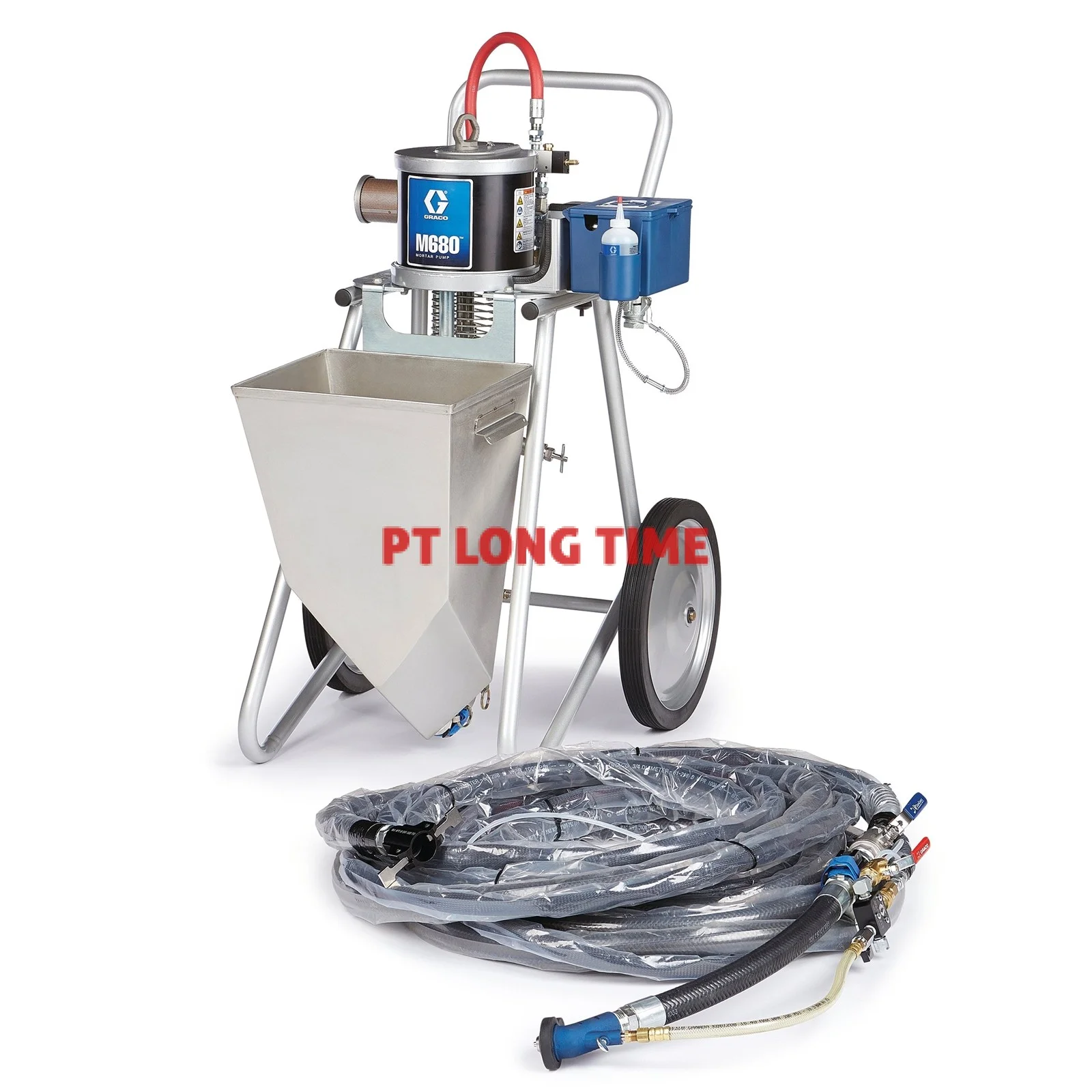

GRACO ToughTek M680a Mortar Pump
Features
Specification
- Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
- Less material waste and more consistent finish than hand-trowling
- Fast, easy cleaning with high velocity flush
- Can be quickly disassembled for hand cleaning
- Explosion-proof for hazardous spray areas
- One convenient air source to run pump and atomize air
Name
GRACO ToughTek M680a Mortar Pump
Brand
Condition
New
| M680 Mortar Sprayer Package | |
| Maximum Working Pressure |
7 MPa, 70 bar |
| Maximum Air Inlet Pressure |
0.7 MPa, 7 bar |
| Minimum Inlet Air Flow (Typical) |
0.85 cubic meters per minute |
| Minimum Inlet Air Flow (Pump Only) |
0.06 cubic meters per minute per liter at 7 bar |
| Pressure Ratio (Fluid to Air) |
10:1 |
| Air Motor Piston Diameter |
191 mm |
| Stroke Length |
120 mm |
| Lower Output |
686 cc per cycle |
| Flow Rate at 30 cycles per minute |
20.6 lpm |
| Flow Rate at 60 cycles per minute |
41.2 lpm |
| Air Inlet Size |
3/4 npt(f) (Chicago Fitting) |
| Fluid Inlet Size |
2 in. Cam Groove (Male) |
| Fluid Outlet Size |
1 npt(f) with a 1 in. Cam and Groove Fitting |
| Weight (without fluid) |
113 kg, (with 7.6 m of 25 mm hose and 3.0 m of 19 mm hose) |
| Sound Pressure |
118 dB(A)* |
| Sound Power |
118 dB(A)* |
| Dimensions | |
| Height |
113 cm |
| Width |
70 cm |
| Depth (pump on cart only) |
81 cm |
| Deep (pump on cart with hopper) |
94 cm |
| Maximum Pump Speed, Do not exceed maximum recommended pump speed of fluid pump to prevent premature pump wear) | |
| Spraying |
40 cycles per minute (typically less than 10 cycles per minute) |
| Flushing |
60–90 cycles per minute (only when pumping flushing fluid) |
| Wetted Parts | |
| Entire System |
Stainless steel, UHMWPE, nylon, plated steel, anodized aluminum, FX-75 |
| Pump |
Stainless steel, carbide, PTFE, UHMWPE, solvent-resistant o-rings |
| Hose Kits |
Nylon core, plated carbon steel fittings, anodized aluminum, nitrile gaskets |
