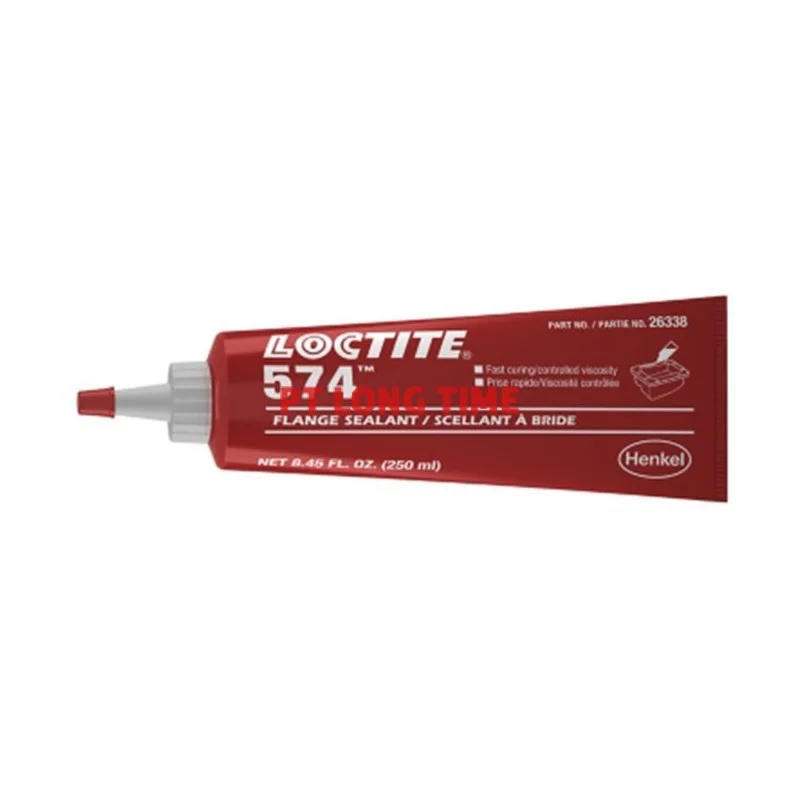

Flange Sealing WEICONLOCK AN 305-74 LOCTITE 574
Specification
Name
Flange Sealing WEICONLOCK AN 305-74 LOCTITE 574
SKU
AN 305-74
Brand
Condition
New
| WEICON SPESIFICATION | ||
| Colour | Orange | |
| Fluorescent | Yes | |
| Viscosity | 30,000 - 100,000 ht mPa·s | |
| Gap Bridging | Up to max. 0.5 mm | |
| Breakaway Torque | 16 - 24 Nm | |
| Prevail Torque | 5 - 10 Nm | |
| Shear Strength Nmm² | (DIN 54452) | 5 - 10 N/mm² |
| Handling Strength | 15 - 30 min. | |
| Final Strength | (100% strength) | 12 h |
| Temperature Resistance | -60°C to +180°C | |
| Compressive Strength (free cutting steel / grub screw = 8.8) | ||
| M_3x6 | Max. 1500 bar | |
| M_4x6 | Max. 1500 bar | |
| M_5x8 | Max. 1500 bar | |
| M_6x10 | Max. 1500 bar | |
| M_8x12 | Max. 700 bar | |
| M_10x16 | Max. 600 bar | |
| LOCTITE SPESIFICATION | |
| Shear Strength Lab | 8.5 N/mm² |
| Gap Filling | 0.25 mm |
| Substrate | Metal: Aluminum, Metal: Steel |
| Fixture Time | 15.0 - 45.0 min. |
| Color | Orange |
